Weg, Lenze, Shark Fans
Harmonization Schedule (HS) and Schedule B Number: 85030090

Plastic Fans    Aluminum Fans    All fans by Size    Allis-Chalmers    Baldor    Century    Doerr
   Fincor   Franklin    General Electric    Leeson    Leroy-Somers    Lincoln    Louis-Allis    Magnetek   Marathon
Reliance    Siemens    Siemens-Allis   AO Smith    Toshiba    US Motors    Westinghouse     Weg

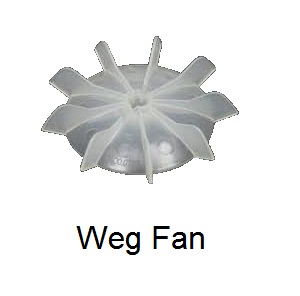

Weg Fan Picture
Part Price
Bore (ID) OuterDiameter Blades-Material Notes
WEG63FP $79.50
0.389" (10mm)
w/pin
4.375" 9-Plastic 6854.2491 (PRETO), 08000638, 63, IEC63
WEG56FP $79.50
0.465" (12mm)
w/pin
4.625" 9-Plastic 6854.2492 (PRETO), 0800.0727, 71, 56 IEC
WEG80EFP $79.50
0.587" (15mm)
w/pin
5.250" 9-Plastic 6854.2493 (PRETO), 0800 0816, 80 , 80IEC,
10030840, 10021197, 17205009 CINZA GRAY
WEG56FP15mm $79.50
0.587" (15mm)
w/pin
6.250" 9-Plastic 0800.0913, 90, 9854.2494 (PRETO),
6484.5594, Ø14.9-56
WEG56farmFP $79.50
0.669" (17mm)
w/pin
6.187" 9-Plastic 0800.0913, 90, 17205011, CINZA, GRAY
(PRETO)
LENZE100FP $79.50
0.669" (17mm)
w/pin
7.187" 13-Plastic 10028030 Ø17, 10021199, 100, Ø23
(PRETO)
WEG100FP $99.50
0.903" (23mm)
w/pin
7.250" 13-Plastic 6854.2495 (PRETO), 6794.5310, Ø17, 0800.1014, Ø23, 100
10028030, 1002 8030, 10021199 100, 17205012, 10030842
10028030 Ø17. 10021199 100 Ø23
LENZE1804P $99.50
0.984" (25mm)
w/pin
7.625" 13-Plastic 6794.5328, Ø24,95mm, 0800.1138, 112, 100
WEG2546RS $49.50
1.093" (28mm)
w/clips and key
5.937" 10-Plastic 6854.2479 (PRETO), 0800.1120, 112 11, 1200rpm, 254T, 256T
10021201, 10030831, 17205090 CINZA GRAY
WEG2104FP $105.00
1.093" (28mm)
w/clips and key
7.500" 13-Plastic 6854.1678 (PRETO), 0800.1138, 112, 1800rpm, 180T, 210T
10021202, 10030766, 17205092 CINZA GRAY
WEG1824FP $105.00
1.180" (30mm)
w/clips and key
6.625" 10-Plastic 6854.2482 (PRETO), 0800.1324, 132 11,
10030832, 10021203
WEG2134FP $105.00
1.181" (30mm)
w/clips, key, pin
9.000" 13-Plastic 0800.1332, 132, 1800rpm, 213T, 215T
10030833, 10021204

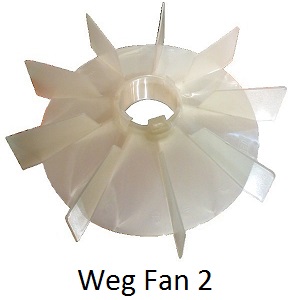

Weg Fan 2 Picture
Part Price
Bore (ID) OuterDiameter Blades-Material Notes
WEG2542FP $95.00
1.732" (44mm)
w/clips, key, pin
6.000" 9-Plastic 10030767 (PRETO), 10026663, 160 II, 254T, 256T
6854.1679, 6524.6376, 3600rpm
WEG2544FP $95.00
1.732" (44mm)
w/clips, key, pin
9.000" 9-Plastic 6854.2485 (PRETO), 6524.6830, 160 1800rpm, 254T, 256T
10030834, 10162026
WEG2544FAL
   Aluminum
$279.50
1.732" (44mm)
w/key, ring clamp
9.000" 9-Aluminum 10026881, 1800rpm, 254T, 256T
923-21
WEG2842FP $95.00
1.969" (50mm)
w/clips, key, pin
5.906" 9-Plastic 10030835 (PRETO), 10026666, 180 II, 3600rpm, 284T, 286T
WEG2844FP $117.50
1.969" (50mm)
w/clips, key, pin
9.000" 9-Plastic 6854.2487 (PRETO) 6524.7720, 180
10030836, 10162030
WEG3242FP $126.50
2.165" (55mm)
w/clips, key, pin
7.000" 9-Plastic 324/326T II, 6524.8433, 200 II
6854.2488 (PRETO), 10026673, 10030837 (PRETO)
WEG3246FP $135.00
2.185" (55.5mm)
w/clips, key, pin
10.157" 9-Plastic 10030768 (PRETO)
10026677, 200, 324T, 326T
WEG3602FP $295.00
2.559" (65mm)
w/clips and key
7.625" 5-Plastic 360, 400, 3600rpm
WEG3642FP $295.00
2.559" (65mm)
w/clips and key
8.375" 9-Plastic 225/250 II, 10030843 (PRETO), 6854.2501
Ø190, 10031239, 10027822
WEG4442W22 $295.00
2.559" (65mm)
w/clips and key
8.500" 5-Plastic 11026503
WEG4442FP $295.00
2.559" (65mm)
w/clips and key
8.75" 9-Plastic 280 II
10030769 (PRETO), 10027823
WEG315W22 $295.00
2.559" (65mm)
w/clips and key
9.375" 5-Plastic 11026508
WEG4472FP $295.00
2.559" (65mm)
w/clips and key
9.50" 9-Plastic 6764.3488, 315 II
6854.2503 (PRETO), 10027825
WEG2254FP $295.00
2.559" (65mm)
w/clips and key
11.75" 5-Plastic 11026502, 13506386, 17204844
WEG3644FP $295.00
2.559" (65mm)
w/clips and key
12.250" 9-Plastic 6854.2502 (PRETO), 6534.6656, 225/250, 360,
10026708, 10030844
WEG440W22 $295.00
2.559" (65mm)
w/clips and key
13.125" 5-Plastic 11026504, 17204792, CINZA, GRAY
WEG4446FP $325.00
2.953" (75mm)
w/clips & key
14.250" 9-Plastic 6764.3470, 280
10030847 (PRETO), 10027824
WEG4474FP $325.00
2.953" (75mm)
w/clips & key
16.75" 9-Plastic 6764.3500, 315
10030848 (PRETO), 10608675
WEG44444FP $325.00
2.997" (76mm)
w/clips & key
9.50" 9-Plastic 315 II
10027826, 10030846

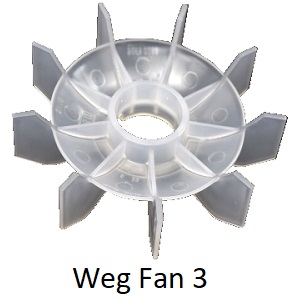

Weg Fan 3 Picture
Part Price
Bore (ID) OuterDiameter Blades-Material Notes
WEG80SA $79.50
1.338" (34mm)
w/pin
5.31" (135mm) 9-Plastic 0800 6806 Ø 34, 0800 6814 Ø 28

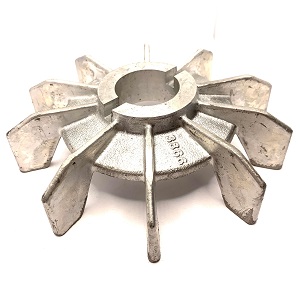

WEG90AL Picture
Part Price
Bore (ID) OuterDiameter Blades-Material Notes
WEG90AL $112.50
1.375"
w/pin
6.187" 10-Aluminum 1002 3866

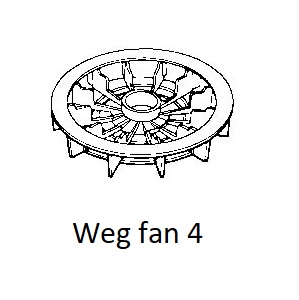

Weg Fan 4 Picture
Part Price
Bore (ID) OuterDiameter Blades-Material Notes
WEG48FP $79.50
0.728" (18.5mm)
w/2 opposing keyways
4.75" (120mm) 13-Plastic FURO Ø18.5 6034.2687 P.P NEMA 48
FURO 18.5 6494.9586 P.A
FURO Ø21.5 6044.9627 P.P
WEG48OS $79.50
0.846" (21.5mm)
w/pin, ring, keyways
5.31" (135mm) 13-Plastic NEMA 56, 0800 0565 FURO Ø 21.5,
0800 0573 FURO Ø 18.5
WEG56OS $79.50
0.846" (21.5mm)
w/2 opposing keyways
5.31" (135mm) 13-Plastic NEMA-56, 6184.8444

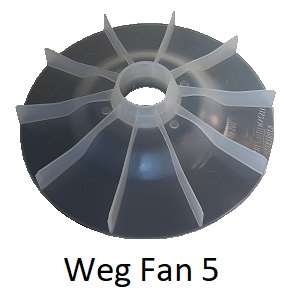

Weg Fan 5 Picture
Part Price
Bore (ID) OuterDiameter Blades-Material Notes
WEG180OS $99.50
1.370"
w/pin, flat spot
7.265" 10-Plastic 03801322, 112S/M, 182/4T, 1P22
10667935



Fan INFP Picture
Part Price
Bore (ID) OuterDiameter Blades-Material Notes
Shark56/140-18 $79.50
0.970"
w/0.330" key
5.312" 5-Plastic Y2-80-2
56, 140 frame
Shark180-18 $79.50
1.125"
w/0.308" key
6.000" 5-Plastic Y2-112-2
182, 184 frame, 1800rpm
Shark210-18 $92.50
1.500"
w/0.385" key
7.250" 5-Plastic 1.875" tall, 14477291, Y2-132-2
213, 215 frame, 1800rpm

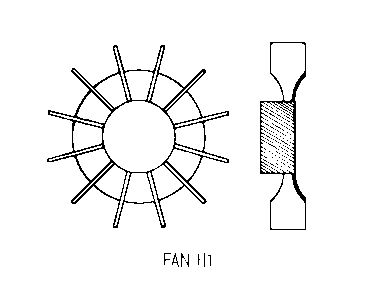

Fan H1
Part Price
Bore (ID) OuterDiameter Blades-Material Notes
WEG2134Al $202.50
30mm
w/pin slots
240mm 13-Aluminum 40mm tall
132, 213T, 215T, W254 frame; 900, 1200, 1800rpm

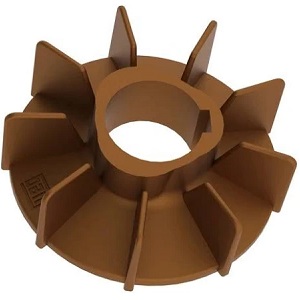

Weg2842Al $140.50
50mm
w/14mm keyway
150mm 9-Aluminum 601A20, A, 47mm tall
180 frame, 3600rpm
