Plastic Replacement Fans Non-Specified OEM
Harmonization Schedule (HS) and Schedule B Number: 85030090

Plastic Fans    Aluminum Fans    All fans by Size    Allis-Chalmers    Baldor    Century    Doerr
   Fincor   Franklin    General Electric    Leeson    Leroy Somer    Lincoln    Louis-Allis    Magnetek   Marathon
Reliance    Siemens    Siemens-Allis   AO Smith    Toshiba    US Motors    Westinghouse     Weg



Part Price
Bore (i.d.) Diameter (o.d.) Blades Notes
BF1+BF13 $26.00
blank 4.875" 10, blue plastic, 1" tall
BF2+BF13 $30.00
5.187" 10, blue plastic, 1" tall
BF3+BF35 $35.00
6.562" 10, blue plastic, 1.250" tall
BF4+BF35 $36.00
6.750" 10, blue plastic, 1.250" tall
BF5+BF54 $51.00
8.500" 10, blue plastic, 1.687" tall
BF6+BF54 $57.00
9.687" 10, blue plastic, 2.187" tall
BF7+BF74 $95.00
11.75" 10, blue plastic, 2.125" tall
BF8+BF74 $120.00
13.125" 10, blue plastic, 2.125" tall
BF1+BF11 $26.00
0.500" 4.875" 10, blue plastic, 1" tall
BF2+BF11 $30.00
5.187" 10, blue plastic, 1" tall
BF3+BF31 $35.00
6.562" 10, blue plastic, 1.250" tall
BF4+BF31 $36.00
6.750" 10, blue plastic, 1.250" tall
BF1+BF114 $26.00
14mm (0.551") 122mm 10, blue plastic, 26mm tall
BF2+BF114 $30.00
132mm 10, blue plastic, 26mm tall
BF1+BF12 $26.00
0.625" 4.875" 10, blue plastic, 1" tall
BF2+BF12 $30.00
5.187" 10, blue plastic, 1" tall
BF3+BF32 $35.00
6.562" 10, blue plastic, 1.250" tall
BF4+BF32 $36.00
6.750" 10, blue plastic, 1.250" tall
BF1+BF116 $26.00
16mm (0.630") 122mm 10, blue plastic, 26mm tall
BF2+BF116 $30.00
132mm 10, blue plastic, 26mm tall
BF1+BF119 $26.00
19mm (0.748") 122mm 10, blue plastic, 26mm tall
BF2+BF119 $30.00
132mm 10, blue plastic, 26mm tall
BF3+BF33 $35.00
0.750" 6.562" 10, blue plastic, 1.250" tall
BF4+BF33 $36.00
6.750" 10, blue plastic, 1.250" tall
BF5+BF55 $51.00
8.500" 10, blue plastic, 1.687" tall
BF6+BF55 $57.00
9.687" 10, blue plastic, 2.187" tall
BF1+BF120 $26.00
20mm (0.787") 122mm 10, blue plastic, 26mm tall
BF2+BF120 $30.00
132mm 10, blue plastic, 26mm tall
BF1+BF122 $26.00
22mm (0.866") 122mm 10, blue plastic, 26mm tall
BF2+BF122 $30.00
132mm 10, blue plastic, 26mm tall
BF3+BF34 $35.00
0.875" 6.562" 10, blue plastic, 1.250" tall
BF4+BF34 $36.00
6.750" 10, blue plastic, 1.250" tall
BF5+BF51 $51.00
8.500" 10, blue plastic, 1.687" tall
BF6+BF51 $57.00
9.687" 10, blue plastic, 2.187" tall
BF3+BF324 $35.00
24mm (0.945") 167mm 10, blue plastic, 31mm tall
BF4+BF324 $36.00
171mm 10, blue plastic, 31mm tall
BF3+BF325 $35.00
25mm (0.984") 167mm 10, blue plastic, 31mm tall
BF4+BF325 $36.00
171mm 10, blue plastic, 31mm tall
BF5+BF528 $51.00
28mm (1.102") 216mm 10, blue plastic, 43mm tall
BF6+BF528 $57.00
256mm 10, blue plastic, 54mm tall
BF5+BF52 $51.00
1.125" 8.500" 10, blue plastic, 1.687" tall
BF6+BF52 $57.00
9.687" 10, blue plastic, 2.187" tall
BF3+BF330 $35.00
30mm (1.181") 167mm 10, blue plastic, 31mm tall
BF4+BF330 $36.00
171mm 10, blue plastic, 31mm tall
BF5+BF530 $51.00
216mm 10, blue plastic, 43mm tall
BF6+BF530 $57.00
256mm 10, blue plastic, 54mm tall
BF5+BF532 $51.00
32mm (1.260") 216mm 10, blue plastic, 43mm tall
BF6+BF532 $57.00
256mm 10, blue plastic, 54mm tall
BF5+BF53 $51.00
1.375" 8.500" 10, blue plastic, 1.687" tall
BF6+BF53 $57.00
9.687" 10, blue plastic, 2.187" tall
BF7+BF71 $95.00
11.750" 10, blue plastic, 2.125" tall
BF8+BF71 $120.00
13.125" 10, blue plastic, 2.125" tall
BF5+BF540 $51.00
40mm (1.575") 216mm 10, blue plastic, 43mm tall
BF6+BF540 $57.00
256mm 10, blue plastic, 54mm tall
BF7+BF72 $95.00
1.625" 11.750" 10, blue plastic, 2.125" tall
BF8+BF72 $120.00
13.125" 10, blue plastic, 2.125" tall
BF7+BF742 $95.00
42mm (1.654") 300mm 10, blue plastic, 55mm tall
BF8+BF742 $120.00
335mm 10, blue plastic, 55mm tall
BF5+BF545 $51.00
45mm (1.772") 216mm 10, blue plastic, 43mm tall
BF6+BF545 $57.00
256mm 10, blue plastic, 54mm tall
BF7+BF745 $95.00
300mm 10, blue plastic, 55mm tall
BF8+BF745 $120.00
335mm 10, blue plastic, 55mm tall
BF7+BF73 $95.00
1.875" 11.750" 10, blue plastic, 2.125" tall
BF8+BF73 $120.00
13.125" 10, blue plastic, 2.125" tall
BF7+BF750 $95.00
50mm (1.969") 300mm 10, blue plastic, 55mm tall
BF8+BF750 $120.00
335mm 10, blue plastic, 55mm tall

Part Price
Bore Diameter Height # Blades Notes
EZF2.5Pl $29.50
blank 2.500" 0.750" 12 Flat back
EZF3.0Pl $33.00
3.000" 0.750" 12 Flat back
EZF3.5Pl $38.50
3.500" 0.750" 12 Flat back
EZF4.0Pl $44.50
4.000" 0.750" 12 Flat back
EZF1FPl+EZF11-0 $28.50

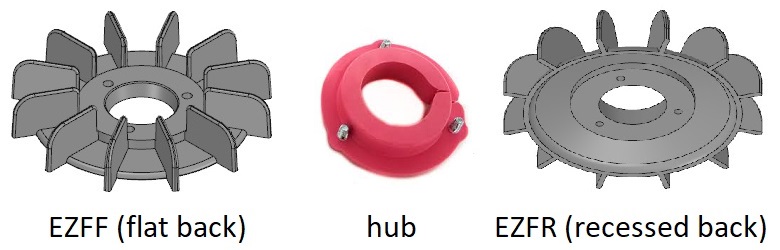

4.875" 0.875" 12 EZFF Flat back
EZF1RPl+EZF11-0 $28.50
4.875" 1.000" 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-0 $30.00
5.312" 0.875" 12 EZFF Flat back
EZF2RPl+EZF11-0 $30.00
5.312" 1.000" 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-0.500 $28.50
0.500" 4.875" 0.875" 12 EZFF Flat back
EZF1RPl+EZF11-0.500 $28.50
4.875" 1.000" 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-0.500 $30.00
5.312" 0.875" 12 EZFF Flat back
EZF2RPl+EZF11-0.500 $30.00
5.312" 1.000" 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-14 $28.50
14mm 125mm 22mm 12 EZFF Flat back
EZF1RPl+EZF11-14 $28.50
125mm 25.4mm 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-14 $30.00
135mm 22mm 12 EZFF Flat back
EZF2RPl+EZF11-14 $30.00
135mm 25.4mm 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-15 $28.50
15mm 125mm 22mm 12 EZFF Flat back
EZF1RPl+EZF11-15 $28.50
125mm 25.4mm 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-15 $30.00
135mm 22mm 12 EZFF Flat back
EZF2RPl+EZF11-15 $30.00
135mm 25.4mm 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-0.625 $28.50
0.625" 4.875" 0.875" 12 EZFF Flat back
EZF1RPl+EZF11-0.625 $28.50
4.875" 1.000" 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-0.625 $30.00
5.312" 0.875" 12 EZFF Flat back
EZF2RPl+EZF11-0.625 $30.00
5.312" 1.000" 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-16 $28.50
16mm 125mm 22mm 12 EZFF Flat back
EZF1RPl+EZF11-16 $28.50
125mm 25.4mm 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-16 $30.00
135mm 22mm 12 EZFF Flat back
EZF2RPl+EZF11-16 $30.00
135mm 25.4mm 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-18 $28.50
18mm 125mm 22mm 12 EZFF Flat back
EZF1RPl+EZF11-18 $28.50
125mm 25.4mm 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-18 $30.00
135mm 22mm 12 EZFF Flat back
EZF2RPl+EZF11-18 $30.00
135mm 25.4mm 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-19 $28.50
19mm 125mm 22mm 12 EZFF Flat back
EZF1RPl+EZF11-19 $28.50
125mm 25.4mm 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-19 $30.00
135mm 22mm 12 EZFF Flat back
EZF2RPl+EZF11-19 $30.00
135mm 25.4mm 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-20 $28.50
20mm 125mm 22mm 12 EZFF Flat back
EZF1RPl+EZF11-20 $28.50
125mm 25.4mm 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-20 $30.00
135mm 22mm 12 EZFF Flat back
EZF2RPl+EZF11-20 $30.00
135mm 25.4mm 12 EZFR Recess: 0.187"
EZF1FPl+EZF11-22 $28.50
22mm 125mm 22mm 12 EZFF Flat back
EZF1RPl+EZF11-22 $28.50
125mm 25.4mm 12 EZFR Recess: 0.187"
EZF2FPl+EZF11-22 $30.00
135mm 22mm 12 EZFF Flat back
EZF2RPl+EZF11-22 $30.00
135mm 25.4mm 12 EZFR Recess: 0.187"

Part Price
Bore (i.d.) Diameter (o.d.) Blades Notes
MMF14x104IT $22.50
14mm (0.551") 104mm (4.095") 12, plastic, 19mm (0.75") tall
MMF14x120IT $23.65
120mm (4.73") 8, plastic, 23mm (0.91") tall
MMF14x132IT $24.80
132mm (5.20") 8, plastic, 25mm (0.98") tall
MMF25x159IT $25.00
25mm (0.984") 159mm (6.26") 12, plastic, 29mm (1.14") tall
MMF29x175IT $37.50
29mm (1.142") 175mm (6.89") 12, plastic, 30mm (1.18") tall
MMF30x195PL $32.50
30mm (1.19") 195mm (7.68") 12, plastic, 33mm (1.30") tall
MMF39x235IT $40.00
39mm (1.535") 235mm (9.252") 12, plastic, 37mm (1.457") tall


Part Price
Bore (i.d.) Diameter (o.d.) Blades Notes
MMF12x99IT $12.50
12mm (0.472") 99mm (3.90") 8, plastic, 19mm (0.75") tall
MMF14x113PL $24.80
14mm (0.551") 113mm (4.45") 12, plastic, 26mm (1.03") tall
MMF15x112IT $22.50
15mm (0.591") 112mm (4.41") 12, plastic, 25mm (0.98") tall
MMF19x133PL $27.80
19mm (0.748") 133mm (5.24") 12, plastic, 25mm (0.99") tall
MMF22x144PL $32.00
22mm (0.867") 144mm (5.67") 12, plastic, 34mm (1.34") tall
MMF23x144PL $27.50
23mm (0.906") 144mm (5.67") 12, plastic, 34mm (1.34") tall
MMF24x162Z $33.00
24mm (0.945") 162mm (6.38") 12 plastic, 27mm (1.06") tall
MMF28x172PL $35.00
28mm (1.103") 172mm (6.78") 12, plastic, 38mm (1.50") tall
MMF28x181Z $36.50
181mm (7.13") 12, plastic, 33mm (1.30") tall
MMF28x188PL $37.60
188mm (7.41") 12, plastic, 42mm (1.66") tall
MMF28x205Z $37.60
205mm (8.07") 12 plastic, 37mm (1.46") tall
MMF29x175PL $37.50
29mm (1.142") 175mm (6.89") 12, plastic, 30mm (1.19") tall
MMF35x236IT $37.50
35mm (1.378") 236mm (9.29") 12, plastic, 48mm (1.89") tall
MMF38x236IT $37.50
38mm (1.496") 236mm (9.29") 12, plastic, 48mm (1.89") tall
MMF40x238PL $56.50
40mm (1.575") 238mm (9.38") 12, plastic, 50mm (1.97") tell
MMF45x295Z $59.80
45mm (1.772") 295mm (11.61") plastic, 54mm (2.13") tall
MMF50x332IT $50.00
50mm (1.969") 332mm (13.07") 12, plastic, 60mm (2.36") tell


Part Price
Bore (i.d.) Diameter (o.d.) Blades Notes
MMF8x77IT $9.50
8mm (0.315") 77mm (3.03") 8, plastic, 19mm (0.75") tall Press on or hose clamp
MMF9x82IT $9.50
9mm (0.354") 82mm (3.23") 8, plastic, 20mm (0.79") tall Press on or hose clamp
MMF10x86IT $10.00
10mm (0.394") 86mm (3.39") 8, plastic, 19mm (0.75") tall Press on or hose clamp
MMF11x95IT $12.50
11mm (0.433") 95mm (3.75") 12, plastic, 23mm (0.91") tall Press on or hose clamp
MMF11x100Z $14.00
100mm (3.94") 8, plastic, 19mm (0.748") tall Push on clamp
MMF11x110Z $21.50
110mm (4.34") plastic, 21mm (0.83") tall Push on clamp
MMF14x130Z $24.80
14mm (0.551") 130mm (5.12") 12, plastic, 28mm (1.10") tall Screw on clamp
MMF19x142Z $31.50
19mm (0.748") 142mm (5.59") 12, plastic, 29mm (1.14") tall Screw on clamp
MMF38x239Z $56.50
38mm (1.496") 239mm (9.41") 12 plastic, 49mm (1.93") tall Screw on clamp


Part Price
Bore (i.d.) Diameter (o.d.) Blades Notes
INF0.750x3.125 $30.00
0.750" w/0.239" key 3.125" 5, plastic, 0.937" tall 56C frame, 3600rpm
INF0.750x4.000 $37.50
0.750" w/0.235" key 4.000" 5, plastic, 1.187" tall 143T/145T frame
INF0.750x5.187 $30.00
0.750" w/0.231" key 5.187" 5, plastic, 1.375" tall 56C frame
INF0.750x6.000 $30.00
0.750" w/0.241" key 6.000" 5, plastic, 1.375" tall 182, 184 frame
Shark56/140-18 $79.50
0.790" w/0.330" key 5.312" 5, plastic, 1.437" tall 56, 140 frame
INF1.125x5.125 $58.50
1.125" w/0.308" key 5.125" 5, plastic, 1.312" tall 182T/184T frame
Shark180-18 $79.50
1.125" w/0.308" key 6.000" 5, plastic, 1.437" tall 182/184 frame, 1800rpm
Shark210-18 $92.50
1.500" w/0.385" key 7.250" 5, plastic, 1.875" tall 213/215 frame, 1800rpm


Part Price
Bore (i.d.) Diameter (o.d.) Blades Notes
MAK2HP $20.50
14mm, 0.551" 155mm, 6.100" 10, green plastic
25mm tall
2-HP, Makita
MAK3HP $20.50
14mm, 0.551" 160mm, 6.300" 10, white plastic
25mm tall
2-HP, Makita
SEN2336037FP $19.50
0.562" 6.250" 10, black plastic
1.000" tall
2336037, Senco, Spedaire
