General Electric Fans Harmonization Schedule (HS) and Schedule B Number: 85030090 Plastic Fans Aluminum Fans All fans by Size Allis-Chalmers Baldor Century Doerr Fincor Franklin General Electric Leeson Leroy-Somers Lincoln Louis-Allis Magnetek Marathon Reliance Siemens Siemens-Allis AO Smith Toshiba US Motors Westinghouse Weg |
||||||||||
|
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF348FA | RFQ | 0.750" | 4.250" | 10-Aluminum | 48 | 48 | 48 | |||
| GEF356FA | RFQ | 0.875" | 4.750" | 10-Aluminum | 56 | 56 | 56 | |||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF356F | $83.00 | 0.625" | 5.750" | 12-Aluminum | 56 | 56 | 56 | |||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF250P1 | $65.00 | 0.875" | 5.375" | 12-Alumnum | ||||||
| GEF205P4 | $65.00 | 1.125" | 5.375" | 12-Aluminum | ||||||
| GEF250P5 | $65.00 | 1.250" | 5.375" | 12-Aluminum | ||||||
|
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF1955AA1 | $65.00 | 1.170" | 5.125" | 15-Aluminum | 140T | 140T | 140T | |||
| GEF1954AA1 | $72.00 | 6.125" | 15-Aluminum | 140T | 140T | 140T | ||||
| GEF184 | $75.00 | 34.5mm | 160mm | 15-Aluminum | 180T | 180T | ||||
| GEF182A | $65.00 | 1.605" | 6.625" | 15-Aluminum | 180T | |||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF2154 | RFQ | 45mm | 200mm | 14-Aluminum | 210T | 210T | ||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
|
GEF1454T 129B1953 E1 |
$150.00 |
0.670" 17mm |
5.750" | 12-Plastic | 140T | 140T | 140T | |||
| GEF1454T-Al | $167.50 | 12-Aluminum | ||||||||
|
GEF1822T 144B1838 C1 |
$89.50 |
1.000" w/ 0.135" keyway 25mm |
6.000" | 14-Plastic | 180T | |||||
| GEF1822T-Al | $167.50 | 14-Aluminum | ||||||||
|
GEF1824T 144B1837A1 also on GEF2132T Check bore size |
$127.50 | 7.375" | 14-Plastic | 180T | 180T | 180T | ||||
| GEF1824T-Al | $169.50 | 14-Aluminum | ||||||||
|
GEF2132T 144B1837A1 also on GEF1824T Check bore size |
$107.50 |
1.187" w/ 0.135" keyway |
7.375" | 14-Plastic | 210T | |||||
| GEF2132T-Al | $167.50 | 14-Aluminum | ||||||||
|
GEF2134T 153B1826 E1 |
$220.00 | 8.750" | 14-Plastic | 210T | 210T | 210T | ||||
|
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF1824U-Al | $116.50 |
1.000" 25mm |
7.000" |
12-Aluminum Plastic now obsolete |
180U | 180U | 210U | |||
| GEF2134U | $297.50 |
1.000" w/ 0.125" keyway 25mm |
8.500" | 12-Plastic | 210U | 210U |
|
|||
| GEF2134U-Al | $176.50 | 12-Aluminum | ||||||||
| GEF2542 | $335.00 |
1.125" w/ 0.200" keyway |
9.000" | 12-Plastic |
|
|
250 | |||
| GEF2542-Al | $127.00 | 12-Aluminum | ||||||||
| GEF2544 | $335.50 | 10.000" | 12-Plastic | 250 | 250 | 280 | ||||
| GEF2544-Al | $260.75 | 12-Aluminum | ||||||||
| GEF2844 | $275.00 | 11.750" | 12-Plastic | 280 | 280 |
|
||||
| GEF2844-Al | $270.50 | 12-Aluminum | ||||||||
| GEF2842Y | $394.50 |
1.375" w/ 0.200" keyway |
9.125" | 12-Plastic |
|
|
280 | |||
| GEF2842Y-Al | $205.50 | 9-Aluminum | ||||||||
| GEF2564Y | $337.00 | 1.375" | 10.000" | 12-Plastic | 250 | 250 |
|
|||
| GEF2564Y-Al | $260.75 | 12-Aluminum | ||||||||
| GEF2844X | $275.00 | 1.375" | 11.750" | 12-Plastic | 280 | 280 |
|
|||
| GEF2844X-Al | $270.50 | 12-Aluminum | ||||||||
| GEF3242A | $335.50 |
1.625" w/ 0.200" keyway |
10.000" | 12-Plastic |
|
|
320 | |||
| GEF3242A-Al | $260.75 | 12-Aluminum | ||||||||
| GEF3242 | $254.00 | 11.750" | 12-Plastic |
|
|
320 | ||||
| GEF3242-Al | $270.50 | 12-Aluminum | ||||||||
| GEF3244 | $155.00 | 13.375" | 12-Plastic | 320 | 320 |
|
||||
| GEF3244-Al | $295.00 | 12-Aluminum | ||||||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF3642 | RFQ |
2.156" 55mm |
9.500" | 9-Plastic |
|
|
360 | |||
| GEF3642-Al | $165.00 | 9-Aluminum | ||||||||
| GEF4042 | $252.00 | 11.500" | 9-Plastic |
|
|
400 | ||||
| GEF4042-Al | $165.00 | 9-Aluminum | ||||||||
| GEF3644 | $510.50 | 14.500" | 12-Plastic | 360 | 360 |
|
||||
| GEF3644-Al | $495.00 | 12-Aluminum | ||||||||
| GEF4044 | $457.00 | 16.250" | 12-Plastic | 400 | 400 |
|
||||
| GEF4044-Al | $415.50 | 12-Aluminum | ||||||||
| GEF4442 | $395.00 | 2.500" | 12.500" | 12-Plastic |
|
|
440 | |||
| GEF4442-Al | $465.00 | 12-Aluminum | ||||||||
| GEF4442A |
|
14.500" | 12-Plastic |
|
|
|
||||
| GEF4442A-Al | $615.00 | 12-Aluminum | ||||||||
| GEF4444 | RFQ | 17.875" | 15-Plastic | 440 | 440 |
|
||||
| GEF4444-Al | $335.00 | 15-Aluminum | ||||||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF3644WR | $662.50 | 3.175" | 10.000" | 9-Plastic |
|
360 |
|
|||
| GEF3644WR-Al | $430.00 | 9-Aluminum | ||||||||
| GEF3646WR | RFQ | 11.000" | 9-Plastic | 360 | 400 |
|
||||
| GEF3646WR-Al | $430.00 | 9-Aluminum | ||||||||
| GEF4046WR | RFQ | 12.250" | 9-Plastic | 400 |
|
|
||||
| GEF4046WR-Al | $430.00 | 9-Aluminum | ||||||||
| GEF4044WR | RFQ | 3.746" | 11.000" | 9-Plastic |
|
400 |
|
|||
| GEF4044WR-Al | $430.00 | 9-Aluminum | ||||||||
| GEF4046WR2 | RFQ | 12.250" | 9-Plastic | 400 | 440 |
|
||||
| GEF4046WR2-Al | $430.00 | 9-Aluminum | ||||||||
| GEF4446WR | RFQ | 13.625" | 9-Plastic | 440 |
|
|
||||
| GEF4446WR-Al | $430.00 | 9-Aluminum | ||||||||
| GEF4444WR | RFQ | 4.184" | 12.250" | 9-Plastic |
|
440 |
|
|||
| GEF4444WR-Al | $430.00 | 9-Aluminum | ||||||||
| GEF4446WR | RFQ | 13.625" | 9-Plastic | 440 |
|
|
||||
| GEF4446WR-Al | $430.00 | 9-Aluminum | ||||||||
|
Teco Brand by General Electric |
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
|
GEF140-Al 31400D036 80 4P |
$112.50 | 16mm | 145mm |
10-Aluminum Plastic now obsolete |
140T | 140T | ||||
|
GEF141-Al 31402C004 |
$112.50 | 18mm | 165mm |
10-Aluminum Plastic now obsolete |
140T | 140T |
|
|||
| GEF180 | $112.50 | 20mm | 145mm | 12-Aluminum | 180T | |||||
|
GEF140A 31400D037 140T 2P |
$135.00 | 23mm | 120mm | 6-Plastic | 140T | 140T | ||||
|
GEF140A-Al 31400D037 140T 2P |
$168.50 | 12-Aluminum | 140T | 140T | ||||||
| GEF141A-Al | $112.50 | 160mm |
10-Aluminum Plastic now obsolete |
140T | 140T | |||||
|
GEF181 31400D042 180T 4P 31402C111 |
$137.50 |
25mm Plastic w/ 8mm key Aluminum w/ set screws |
205mm | 11-Plastic | 180T | 180T | ||||
|
GEF181-Al 31400D042 180T 4P |
$144.00 | 10-Aluminum | 180T | 180T | ||||||
|
GEF218 21400D044 |
$142.50 | 240mm | 11-Plastic | 210T | 210T | 250T | ||||
|
GEF218-Al 21400D044 31402C110 |
$197.50 | 10-Aluminum | 210T | 210T | 250T | |||||
|
GEF180A-Al 31400D045 180T 2P |
$162.50 | 28mm | 155mm | 6-Aluminum | 180T | |||||
|
GEF210A 31400D043 210T 2P |
$126.50 | 180mm | 6-Plastic | 210T | ||||||
|
GEF210A-Al Aluminum version |
$173.50 | 12-Aluminum | 210T | |||||||
|
GEF181A-Al 31400D042 180T 4P |
$144.00 | 205mm |
10-Aluminum Plastic now obsolete |
180T | 180T | |||||
|
GEF211A 31400D007 31400D044 (not unique) |
$142.50 | 240mm | 10-Plastic | 210T | 210T | |||||
|
GEF211A-Al 31400D007 |
$197.50 | 10-Aluminum | 210T | 210T | ||||||
|
GEF251 31400D008 31402C109 |
$247.50 | 280mm | 10-Plastic | 250T | 250T | |||||
|
GEF251-Al 31400D008 31402C109 |
$258.50 | 12-Aluminum | 250T | 250T | ||||||
|
GEF320 31402C101 |
$142.50 |
45mm w/ 12mm key |
280mm | 10-Plastic | 320T | 320T | ||||
| GEF281 | $335.00 |
45mm w/ 12mm keyway |
320mm | 10-Aluminum | 280T | 280T | ||||
| GEF321 | $455.50 | 50mm | 360mm | 10-Aluminum | 320T | 320T | ||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF281Fe | RFQ | 45mm | 320mm | 10-Iron | 280T | 280T | ||||
| GEF321Fe | RFQ | 50mm | 360mm | 10-Iron | 320T | 320T | ||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF6704G1 | $85.00 |
0.875" w/ 0.187" keyway |
6.312" | 14-Plastic |
|
|
210T | |||
| GEF6704G1-Al | $126.50 | 14-Aluminum | ||||||||
| GEF6704G2 | $113.50 |
1.125" w/ 0.187" keyway |
14-Plastic |
|
|
210T | ||||
| GEF6704G2-Al | $126.50 | 14-Aluminum | ||||||||
|
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
|
GEF2134TL 6700 159C H-1 |
$105.00 |
0.875" w/ 0.200" keyway |
7.375" | 14-Plastic | 210T | 210T | 210T | |||
| GEF2134TL-Al | $127.50 | 14-Aluminum | ||||||||
| GEF2542TL | $102.50 |
1.125" w/ 0.200" keyway |
7.375" | 14-Plastic |
|
|
250T | |||
| GEF2542TL-Al | $127.50 | 14-Aluminum | ||||||||
| GEF2544TL | $163.50 | 8.875" | 14-Plastic | 250T | 250T | 280T | ||||
| GEF2544TL-Al | $110.00 | 14-Aluminum | ||||||||
| GEF2844TL | $128.50 | 10.000" | 14-Plastic | 280T | 280T |
|
||||
| GEF2844TL-Al | $190.00 | 14-Aluminum | ||||||||
| GEF2546TL | RFQ | 1.375" | 7.500" | 14-Plastic |
|
250T | 250T | |||
| GEF2546TL-Al | $125.00 | 14-Aluminum | ||||||||
| GEF3242TL | $225.00 |
1.875" w/ 0.250" keyway |
10.000" | 14-Plastic |
|
|
320T | |||
| GEF3242TL-Al | $225.00 | 14-Aluminum | ||||||||
| GEF3244TL | $258.00 | 1.875" | 11.000" | 14-Plastic | 320T | 320T |
|
|||
| GEF3244TL-Al | $358.00 | 14-Aluminum | ||||||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF3642TL | $310.00 | 2.500" | 10.000" | 14-Plastic |
|
|
360T | |||
| GEF3642TL-Al | $215.00 | 14-Aluminum | ||||||||
| GEF4442TL | $287.50 | 2.500" | 11.000" | 14-Plastic |
|
|
440T | |||
| GEF4442TL-Al | $534.50 | 14-Aluminum | ||||||||
| GEF3644TL | $255.00 | 2.500" | 12.625" | 14-Plastic | 360T | 360T |
|
|||
| GEF3644TL-Al | $465.00 | 14-Aluminum | ||||||||
| GEF4044TL | RFQ | 2.500" | 14.000" | 14-Plastic | 400T | 400T |
|
|||
| GEF4044TL-Al | $275.00 | 14-Aluminum | ||||||||
| GEF4444TL | $287.00 |
2.500" w/ 0.250" keyway |
15.375" | 14-Plastic | 440T | 440T |
|
|||
| GEF4444TL-Al | $325.00 | 14-Aluminum | ||||||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
|

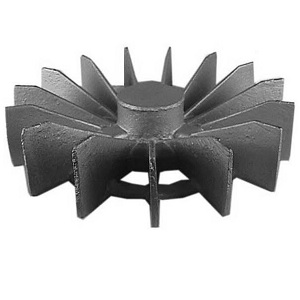

GEF159C8190H1 Hyundai |
$207.50 | 0.875" | 7.375" | 15-Aluminum | 180T | 180T | 180T | |||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF2842P | RFQ | 1.125" | 9.000" | 12-Plastic |
|
|
280 | |||
| GEF2842P-Al | $125.00 | 12-Aluminum | ||||||||
| GEF2844P | RFQ | 1.125" | 10.000" | 12-Plastic | 280 | 280 | 360 | |||
| GEF2844P-Al | $105.00 | 12-Aluminum | ||||||||
| GEF6802-1 | RFQ | 2.437" | 9.000" | 12-Plastic |
|
|
250 |
|||
| GEF6802-1-Al | $190.00 | 12-Aluminum | ||||||||
| GEF6904-1 | RFQ | 2.437" | 10.000" | 12-Plastic |
280 |
280 |
280 |
|||
| GEF6904-1-Al | $175.00 | 12-Aluminum | ||||||||
|
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF3602VR | RFQ | 2.000" | 9.500" | 4-Bronze | 360T | |||||
| GEF3602VL | RFQ | 2.000" | 9.500" | 4-Bronze | 360T | |||||
| GEF4002VL | $454.00 | 2.000" | 12.750" | 4-Aluminum | 360 | |||||
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
| GEF3242P | RFQ | 1.750" | 13.625" | 12-Plastic |
|
360 |
|
|||
| GEF3242P-Al | $285.00 | 12-Aluminum | ||||||||
| GEF3244P | RFQ | 1.750" | 14.875" | 12-Plastic | 320 |
|
|
|||
| GEF3244P-Al | $270.00 | 12-Aluminum | ||||||||
|
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
|
GEF114C970P1 114C970P1A |
$12.50 | 17mm | 140mm | 11-Plastic | ||||||
|
|
||||||||||
| Part | Price | Bore (ID) | Diameter | Blades-Material | 1200rpm frame | 1800rpm frame | 3600rpm frame | |||
|
GEF256F 976B493AP1, 976B493G1 |
$19.50 |
17mm w/flat spots |
140mm | 12-Plastic | ||||||
|
