Weg Switches

H.S. Number: 8503.00.500
AO Smith    Baldor    Bell & Gosett    Bodine    Centrifugal Mechanisms    Century    Doerr    Electra
Emerson    Flint & Walling    Fan & Limit   Franklin    General Electric    Hobart/Jack & Heinz    Leeson    Leland
Magnetek    Marathon    Master    Reliance    Tatung    Toshiba    US    Wagner    Weg    Westinghouse

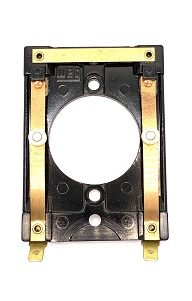

Weg3B Drawing

1.66" id 2.00" span
2.03" & 2.92" c-c mounting holes

WEG3B (2 sets of contacts)   $79.50
1.45" id. Takes 1.00" Klixon
2.03" c-c mouting holes
60043671

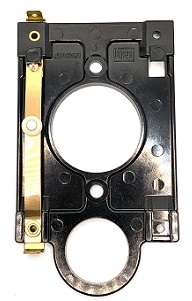

WEG2 (1 set of contacts)   $68.00


1.66" id. Takes 1.25" Klixon.
2.03" c-c mounting holes

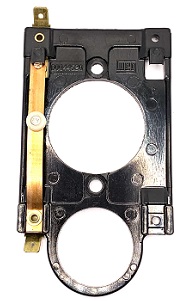

WEG3 (1 set of contacts)   $68.00

Comes w/Compela S65446 89
Circuit breaker

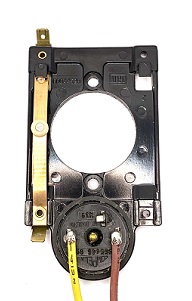

WEG3A (1 set of contacts)   $79.50

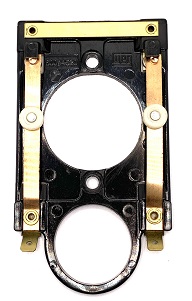

WEG3DC Drawing

1.66" id Takes 1.25" Klixon.
2.03" c-c mounting holes
60044520

WEG3DC (2 sets of contacts)   $79.50

2.562" id 3.000" span
3.000" c-c mounting holes
60043760

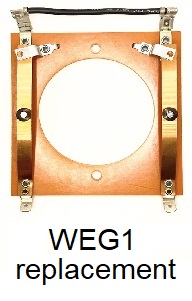

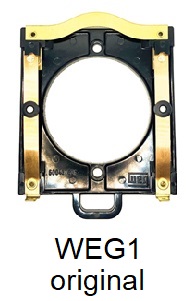

WEG1 (2 sets of contacts)   $29.50

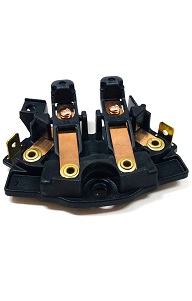

Weg Rotating Switch Drawing


13mm id 52.5mm spool od
0.514" id 2.062" od
w/3 keyways
08650225

WEG2R-P&S
$74.50
1800rpm
WEG10017489 $74.50
3600rpm


16mm id 58.5mm spool od
0.630" id 2.302" od
6002.7501

WEG56(16mm)-18 $69.56
1800rpm

WEG56(16mm)-36 $69.56
3600rpm


18mm id 58.5mm spool od
0.704" id 2.302" od
6014.3579

WEG56(18mm)-18 $69.56
1800rpm

WEG56(18mm)-36 $69.56
3600rpm


1.187" id 3.312" spool od
0865.0233

WEG60-18 $99.50
1800rpm

WEG60-36 $99.50
3600rpm
