Emerson Switches
H.S. Number: 8503.00.500
AO Smith    Baldor    Bell & Gosett    Bodine    Centrifugal Mechanisms    Century    Doerr    Electra
Emerson    Flint & Walling    Fan & Limit   Franklin    General Electric    Hobart/Jack & Heinz    Leeson    Leland
Magnetek    Marathon    Master    Reliance    Tatung    Toshiba    US    Wagner    Weg    Westinghouse


EM265758 Drawing
Mounting holes: 3.437" center-to-center
EM403A
265758-004
Three sets of contacts
Obsolete
Call for Availablility
  Position C Position L Posiution H Unmarked Above Arm
Top One QM-0.187" One QM-0.187" One QM-0.187" One QM-0.187" One QM-0.187"
Bottom One QM-0.250", one bolt One QM-0.250", one bolt One QM-0.250", one bolt
EM2105
265758-004
Two sets of contacts
Obsolete
Call for Availablility
Top One QM-0.187" One QM-0.187" One QM-0.187" One QM-0.187"
Bottom One QM-0.250", one bolt One QM-0.250", one bolt One QM-0.250", one bolt
EM2108   $82.50
265758-004
One set of contacts
Obsolete
Call for Availability
  Position 1 Position 2 Position 3 Position A Unmarked
Top One QM-0.187", one bolt One QM-0.187" Two QM-0.187" One QM-0.187" One QM-0.187"
Bottom One QM-0.250" Two QM-0.250", one bolt One QM-0.250" Two QM-0.250", one bolt

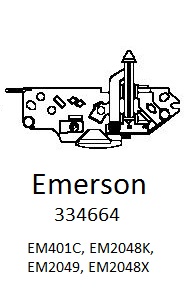

EM334664
                            Drawing
Mounting holes: 3.625" center-to-center, 3.500" center-to-center
EM401C   $82.50
334664
one set of contacts
  Position 1 Position 2 Position 3 Position 4 Position 5
Top One QM-0.187" Two QM-0.187"   One QM-0.187" One QM-0.187"
Bottom One QM-0.250", one bolt One QM-0.250"   One QM-0.250", one bolt One QM-0.250"
EM2048K   $82.50
334664
one set of contacts
Top One QM-0.187"     One QM-0.187" One QM-0.187"
Bottom Two QM-0.250", one bolt     One QM-0.250", one bolt One QM-0.250"
EM2049   $82.50
334664
one set of contacts
Top One QM-0.187"   One QM-0.187" One QM-0.187" One QM-0.187"
Bottom Two QM-0.250", one bolt   One QM-0.250", one bolt One QM-0.250", one bolt One QM-0.250"
EM2048X   $82.50
334664
one set of contacts
Top One QM-0.187" Two QM-0.187" One QM-0.187" One QM-0.187" One QM-0.187"
Bottom One QM-0.250", one bolt One QM-0.250" One QM-0.250", one bolt One QM-0.250", one bolt One QM-0.250"

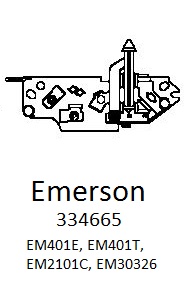

EM334665 Drawing
Mounting holes:  3.625" center-to-center, 3.500" center-to-center
EM401E   $82.50
334665
one set of contacts
  Position 1 Postition 2 Position 3 Position 4 Postition 5
Top One QM-0.187" Two QM-0.187" One QM-0.187" One QM-0.187" One QM-0.187"
Bottom Two QM-0.250", one bolt One QM-0.250" One QM-0.250", one bolt One QM-0.250", one bolt One QM-0.250"
EM30326   $82.50
334665
one set of contacts
Top   Two QM-0.187"   One QM-0.187" One QM-0.187"
Bottom   One QM-0.250"   One QM-0.250", one bolt
EM401RG  $82.50
334665
one set of contacts
Top One QM-0.187"     One QM-0.187" One QM-0.187"
Bottom Two QM-0.250", one bolt     Two QM-0.250", one bolt One QM-0.250"
EM2101C  $82.50
334665
one set of contacts
Top One QM-0.187"     One QM-0.187" One QM-0.187"
Bottom One QM-0.250", one bolt     One QM-0.250", one bolt Stub
EM401T   $82.50
334665
two sets of contacts
  Position C Position H Position L Unmarked Position
Top One QM-0.187" One QM-0.187" One QM-0.187" One QM-0.187"
Bottom One QM-0.250", one bolt One QM-0.250", one bolt One QM-0.250", one bolt

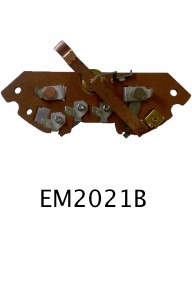

EM2021B Drawing
Mounting: 3.437 c-to-c
Top
Position T1: One QM-0.187"
Position T4: One QM-0.187"
Unmarked: One QM-0.187", one QM-0.187"
Unmarked: One QM-0.187"
Bottom
Position T1: One QM-0.250", one bolt
Position T4: One QM-0.250", one bolt
Position B: One QM-0.250"
Unmarked: One screw, one screw
Unmarked: One screw, one screw


EM2021B    OBSOLETE

Bore: 0.625"   Spool: 1.460"
EM78-18 (1800rpm)   $46.50

EM78-36 (3600rpm)   $46.50


Bore: 0.625"   Spool: 2.000"
215234-002   307781
EM76-18 (1800rpm)   $46.50
EM76-36 (3600rpm)   $46.50
Emerson rotating switch drawing

Bore: 0.750"   Spool: 2.000"
EM77-18 (1800rpm)   $46.50
EM77-36 (3600rpm)   $46.50


1.223" i.d. x 2.875" o.d.
DO904480-18 $60.50
1800 rpm

US906051-36 $56.50
3600 rpm

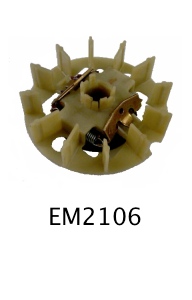

EM2106 Drawing
Bore: 0.625"   Spool: 2.000"   Fan: 3.375"
EM2106 w/fan   $55.00
EM2050 Drawing
744451

2 sets of contacts
Top
Position 1: One QM-0.187"
Position 4: One QM0.250", one bolt
Position 5: One QM-0.250", one bolt
Unmarked: One QM-0.187"
Bottom
Position 1: One QM-0.250", one bolt
Position 4: One QM-0.187"
Position 5: One QM-0.187"


EM2050   $79.50


3 sets of contacts
Top
Position H: One QM-0.187"
Position 5: One QM-0.187"
Unmarked: One QM-0.187"
Position C: One QM-0.187"
Position L: One QM-0.187"
Bottom
Position H: One QM-0.250"
Position C: One QM-0.187"
Position L: One QM-0.187"


EM2053   $79.50

EM102   $20.00
  Must Specify Configuration
When Ordering

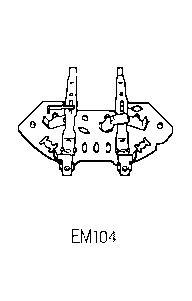

EM104   $20.00
Must Specify Configuration
When Ordering
