Franklin Switches
Note: Franklin parts are no longer available for purchase. This is our remaining stock.

H.S. Number: 8503.00.500
AO Smith    Baldor    Bell & Gosett    Bodine    Centrifugal Mechanisms    Century    Doerr    Electra
Emerson    Flint & Walling    Fan & Limit   Franklin    General Electric    Hobart/Jack & Heinz    Leeson    Leland
Magnetek    Marathon    Master    Reliance    Tatung    Toshiba    US    Wagner    Weg    Westinghouse




FR152138-901 (⅓hp 230V)  $37.50
FR152138-902 (½hp 230V)  $37.50
FR152138-904 (1hp 230V)  $37.50
FR152138-905 (⅓hp 115V)  $37.50
FR294611-901    $50.00
FR294611-902 (1.5hp) Obsolete

FR294611-903 (1hp jet) Obsolete

FR294611-904 (1.5 hp jet ) Obsolete

FR294611-905 $50.00
FR294614-902 (3hp)   $50.00
FR294614-906   Obsolete

FR294614-907 (2hp)   Obsolete

FR294614-980   $50.00
FR294614-981   $50.00
FR294616-903 Obsolete

FR294616-905   $50.00
FR294621-903 (0.75hp)   $50.00
FR294621-904 (1hp) Obsolete

FR294621-905 (0.75hp jet) Obsolete

FR294622-902 Obsolete

FR294622-904 (0.33hp jet) Obsolete

FR294622-905   Obsolete

FR294622-906   Obsolete

FR294622-909   Obsolete

FR294623-905 Obsolete

FR294624-906   $65.00
FR294624-907   Obsolete

FR294661-903   Obsolete

FR294631-901 (0.5hp)   $50.00
FR294631-902 (0.5hp jet) Obsolete

FR294632-902   Obsolete

FR294632-905   $50.00
FR294632-983 Obsolete

FR294632-991   $50.00
FR294635-902 Obsolete

FR294642-903   Obsolete


FR1B   1 set of contacts   $42.00
0.375" diameter contacts
2.500" & 1.500" c-c mounting holes

FR1B250     1 set of contacts
0.250" diameter contacts
2.500" & 1.500" c-c mounting holes
OBSOLETE: Call for availability


FR1D  $40.00   2 sets of contacts
2.500" & 1.500" c-c mounting holes
OBSOLETE: Call for availability

FR30923L   3 sets of contacts   $47.50
2.500" & 1.500" c-c mounting holes
bore: 0.750"   spool: 2.500"
FR1-18 (1800rpm) Obsolete

FR1-36 (3600rpm)   $15.00

bore: 0.735"   rollers: 1.250" c-c
FR2-18 (1800rpm)   $15.00
FR2-36 (3600rpm)   $15.00

bore: 0.865"   rollers: 1.250" c-c
FR3-18 (1800rpm)   $15.00
FR3-36 (3600rpm) Obsolete


bore: 0.536"   spool: 1.750"
FR32-18 (1800rpm)   $15.00

bore: 0.742"   spool: 1.750"
FR33-18 (1800rpm)   $15.00

FR1E   $20.00
1 set of contacts
3.250" c-c mounting holes
7 terminals

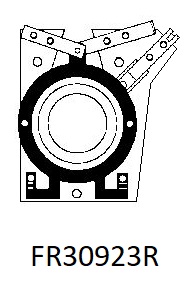

FR30923R   3 sets of contacts   $47.50
2.500" & 1.500" c-c mounting holes

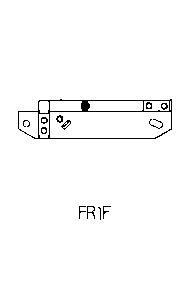

FR1F   $20.00
2 sets of contacts
3.187" c-c moutning holes
3 terminals

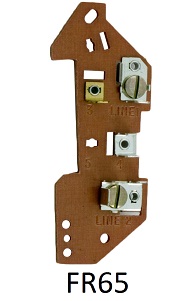

FR65 Drawing

FR65 $10.50
1/2 to 2 hp, Uniseal

bore: 0.745"   spool: 2.250"
FR297949-901 (1800rpm)   $22.50

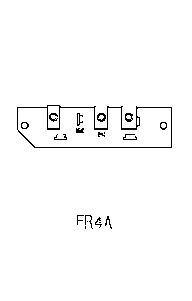

FR4A   $10.00
3.250" c-c mounting holes
3 terminals 3 bolts

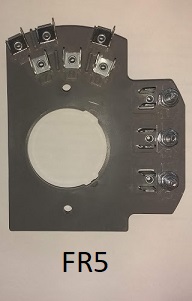

FR5 Drawing
38B574
2.5" c-c mounting holes
1.67" hole diam.

  FR282070-901 $33.00
Terminal positions:
QM250 triples at 4, 5, 6
QM250 triples and bolt at 1, 2, 3

FR282070-903 $33.00
Terminal positions:
QM250 doubles at 4, 5, 6, 7, 8, 9
QM250 triples and bolt at 1, 2, 3

Drawing FR294612

FR294612-782  $50.00

FR294612-784  $85.00




Other Stock Franklin Parts:

FR275754-101 (switch)   $30.00
FR277798-923 (switch)   $25.00
FR292433-101 (submatic)   $25.00
FR292606-901 (switch)   $25.00
FR294490-901 (triac)   Obsolete

FR294490-910 (triac)   Obsolete

FR297323-903 (chip board) $75.00
FR297323-908 (chip board) $75.00
FR4B $10.00
3.250" c-c mounting holes
10 terminals

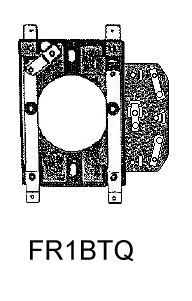

FR1BTQ Drawing
FR1BTQ $40.50
2.625" c-c mounting holes
3 sets of cantacts, 20 terminals
