Baldor Switches
H.S. Number: 8503.00.500
AO Smith    Baldor    Bell & Gosett    Bodine    Centrifugal Mechanisms    Century    Doerr    Electra
Emerson    Flint & Walling    Fan & Limit   Franklin    General Electric    Hobart/Jack & Heinz    Leeson    Leland
Magnetek    Marathon    Master    Reliance    Tatung    Toshiba    US    Wagner    Weg    Westinghouse

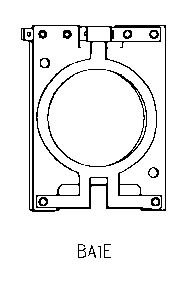

BA1E   $31.50
1 set of contacts
2.750" c-c mounting holes
for 56 frame

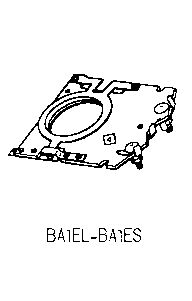

BA1EL   $48.50
  1 set of contacts
3.750" c-c mounting holes
2 bolts - 10 spades - plate: 3.375 x 3.875"


BA1ES   $41.50
1 set of contacts
3.500" c-c mounting holes
2 bolts - 10 spades - plate: 3.375 x 3.375"

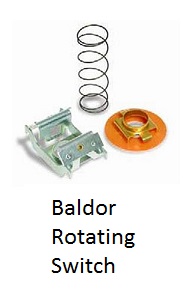

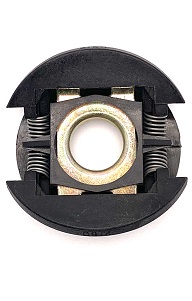

Baldor Rotating Switch


0.812" id - 2.187" spool od

BA56-12 (1200rpm)   $44.50
BA56-18 (1800rpm)   $44.50
BA56-18W (1800rpm)   $44.50
bigger mechanism
BA56-36 (3600rpm)   $44.50

1.125" id - 3.625" spool od

BA184-12 (1200rpm)   $51.50
BA184-18 (1800rpm)   $51.50
BA184-36 (3600rpm)   $51.50

1.375" id - 3.625" spool od

BA213-12 (1200rpm)   $59.50
BA213-18 (1800rpm)   $59.50
BA213-36 (3600rpm)   $59.50

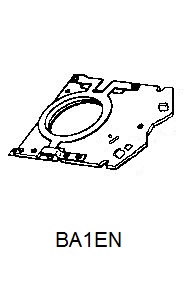

BA1EN   $32.50
1 set of contacts
2.750" c-c mounting holes
for 56 frame

BA2A   $97.50
2 sets of contacts
2.687" c-c mounting holes
Reverswitch
W-R R98-19 E1

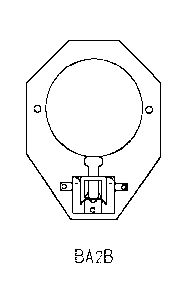

BA2B   $115.00
2 sets of contacts
3.312" c-c mounting holes
Reveswitch





BA1ET $28.50

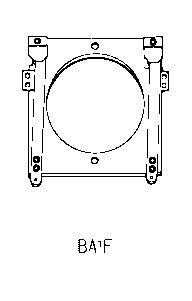

BA1F   $25.75
2 sets of contacts
3.375" c-c mounting holes
2.875" shaft id
3.375" arm span
for 182-215 frame

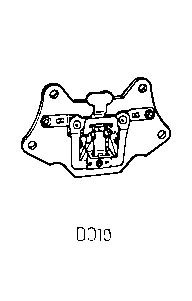

DO10 $90.50
2 sets of contacts  instant reversing
1.812" & 2.750" mounting holes
R98-5


0.665" id - 2.128" spool od
BA3-36 (3600rpm) $17.50

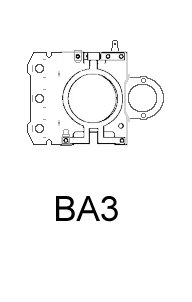

BA3   $39.50
1 set of contacts
3.125" c-c mounting holes




1 set of contacts
3.250" hole diameter
3.562" arm span

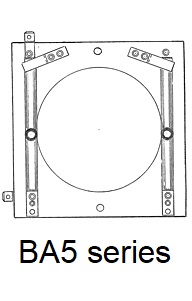

BA5 $46.50
4.125" c-c mounting holes

BA5A02 $46.50
3.625" c-c mounting holes

BA5A01 $46.50
3.422" c-c mounting holes

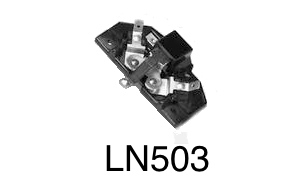

LN503 Drawing
LN503
   $27.95
SP5067, SP5067SP


0.780" id - 2.250" spool od

BA9001A22-18 (1800rpm) $19.93
RS9001A22


0.793" id - 2.250" spool od

BA9001A23-12 (1200rpm) $19.93
RS9001A23

BA9001A13-18 (1800rpm) $19.93
RS9001A13

BA9001A15-2 (2 speed) $19.93
RS9001A15


0.806" id - 2.250" spool od

BA56-18T (1800rpm) $23.80
RS9001A01

BA56-36T (3600rpm) $20.00
2.60" plate diam., RS9001A02

BA9001A06-36 (3600rpm) $20.00
2.60" plate diam., RS9001A06

BA56-36TS (3600rpm) $22.50
2.40" plate diam., RS9002A15

BA56-2T (2-speed) $20.00
RS9001A05


1.127" id - 2.875" spool od

BAPL107-18 (1800rpm) $40.50
RS9000A23


1.127" id - 3.562" spool od

BA9000A09-18 (1800rpm) $40.50
RS9000A09

BA9000A11-36 (3600rpm) $40.50
RS9000A11


1.356" id - 3.562" spool od

BA9000A02-18 (1800rpm) $41.50
RS9000A02


1.375" id - 3.562" spool od

BA9000A03-12 (1200rpm) $54.50
RS9000A03

BAPL104-18 (1800rpm) $41.50
RS9000A02

BA9000A01-36 (3600rpm) $39.50
RS9000A01


1.597" id - 3.562" spool od

BA9000A08-12 (1200rpm) $56.50
RS9000A08

BA9000A05-18 (1800rpm) $41.50
RS9000A05

BA9000A06-36 (3600rpm) $39.50
RS9000A06
