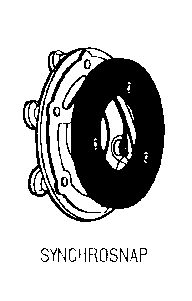

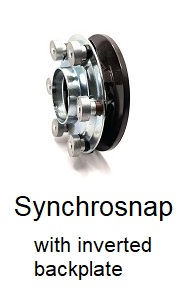

Centrifugal Mechanisms (Synchrosnap and Spring Type) H.S. Number: 8503.00.500 AO Smith Baldor Bell & Gosett Bodine Centrifugal Mechanisms Century Doerr Electra Emerson Flint & Walling Fan & Limit Franklin General Electric Hobart/Jack & Heinz Leeson Leland Magnetek Magnetics International Marathon Master Peerless Reliance Tatung Toshiba US Wagner Weg Westinghouse
|
|||||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 0.316" | 1.84" |
FA89434005-36 $36.95 |
|||||
| 0.496" | 1.84" |
HO6912024-36 $20.00 |
|||||
| 2.250" |
SM610175X-18 OBSOLETE |
||||||
|
0.51" x 0.26" rectangular |
N/A Finger actuated |
SM56-36 for 60Hz motors OEM w/springs $17.50 SM56-36(50Hz) for 50Hz motors OEM w/springs $17.50 |
SM56-18 OEM w/springs $16.50 |
||||
|
13mm (0.514") |
52.5mm (2.062") |
WEG10017489-36 OEM w/springs $74.50 |
WEG2R-P&S-18 OEM w/springs $74.50 |
||||
|
14mm (0.551") w/collar & set screws |
32.5mm (1.250") |
T60R14-36 OEM w/springs $29.50 |
T60R14-18 OEM w/springs $19.75 |
||||
|
14mm (0.551") Press-on to shaft |
45mm (1.77") |
T56R14-36 OEM w/springs $17.50 |
|||||
| 0.594" | 2.750" |
JHFC5401-18 $22.00 |
|||||
| 0.611" | 1.875" |
BO5-18, 50Hz OEM w/arc-shaped weights $37.00 BO5-18, 60Hz OEM w/arc-shaped weights $37.00 |
|||||
| 2.000" |
BO4-36 OEM w/arc-shapedweights $37.00 |
BO4-18 OEM w/arc-shaped weights $37.00 |
|||||
| 2.250" |
MRAA335722-36 $20.00 |
||||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 0.615" | 1.812" |
DO6-36 $20.00 |
DO6-18 $22.00 |
DO6-12 $25.00 |
MIA7067AD-9 $27.50 (900 rpm) |
||
| 2.250" |
MIA7067D-18 $22.00 |
||||||
| 0.625" | 1.460" |
EM78-36 OEM w/springs & mounting fingers $46.50 |
EM78-18 OEM w/springs & mounting fingers $46.50 |
||||
| 2.000" |
CN701-36 OEM w/springs $27.50 |
CN701-18 OEM w/springs $27.50 |
|||||
| 2.000" |
EM76-36 OEM w/springs & mounting fingers $46.50 |
EM76-18 OEM w/springs & mounting fingers $46.50 |
|||||
|
16mm (0.629") |
33mm |
T60R16-36S w/collar & set screws $31.50 |
|||||
| 46mm |
T60R16-36 w/collar & set screws $31.50 |
T60R16-18 w/collar & set screws $44.50 |
|||||
| 58.5mm |
WEG56(16mm)-36 OEM w/springs $74.50 |
WEG56(16mm)-18 OEM w/springs 56 Frame $74.50 WEG48(16mm)-18 OEM w/springs 48 Frame $56.50 |
|||||
| 70mm |
T60R16-18A w/collar & set screws $33.50 |
||||||
| 0.63" | 2.000" |
WH678D998H14 $21.00 |
WH678D998H12 $32.00 |
WH678D998H15 $30.00 |
|||
| 0.636" | 2.250" |
HO1-18 $27.50 |
|||||
| 0.637" | 1.875" |
WH602-36 $21.00 |
WH602-18 $32.00 |
WH602-12 $30.00 |
|||
| 2.375" |
WH605-36 $23.00 |
WH605-18 $32.00 |
WH605-12 $31.00 |
WH605-2 (2 speed) $34.00 |
|||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 0.665" | 2.125" |
BA3-36 OEM w/springs $22.50 |
|||||
| 0.667" | 2.250" |
SM148-36 $24.00 |
SM148-18 $25.80 |
||||
|
17mm (0.669") |
48mm (1.89") |
T70R-36 OEM w/springs $34.50 |
T70R-18 OEM w/springs $14.50 |
||||
|
51mm (2.00") |
GE701R36 OEM w/springs $37.00 |
GE701R18 OEM w/springs $37.00 |
GE701R2 (2 speed) OEM w/springs $37.00 |
||||
|
54mm (2.13") |
T80R17-36 OEM w/springs $34.50 |
T80R17-18 OEM w/springs $34.50 |
|||||
| 0.674" | 2.250" |
DO13-36 $24.00 |
DO13-18 $25.00 |
||||
| 0.682" | 1.84" |
MIA7067-36 $24.00 |
MASWIT00401-18 $25.00 |
MASWIT00601-12 $26.00 |
|||
| 0.688" | 2.375" |
WH719-36 $30.25 |
WH719-18 $30.25 |
WH719-12 $35.50 |
|||
| 2.500" |
WH703-18 OEM w/springs $27.50 |
||||||
| 2.500" |
WH1020-18 $30.25 |
||||||
| 2.750" |
BR12772-18 $30.25 |
||||||
| 0.706" | 2.250" |
KO25078204-36 $34.35 |
CM24753-18 $28.75 |
||||
|
18mm (0.709") |
58.5mm |
WEG56(18mm)-36 OEM w/springs $74.50 |
WEG56(18mm)-18 OEM w/springs $74.50 |
||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 0.729" |
1.33" Tatung high spool |
T60R19-36S OEM w/springs $31.50 |
T60R19-18S OEM w/springs $33.50 |
||||
|
1.500" Tatung high spool |
T60R19-36 $31.50 |
T60R19-18 $33.50 |
|||||
| 2.250" |
DO2-36 $24.25 |
DO2-18 $24.25 |
DO2-12 $30.75 |
DO2-9 (900rpm) $37.50 DO2-6 (600rpm) $37.50 |
|||
| 2.750" |
MOMX220260F-36 $24.25 |
MOMX200460F-18 $24.25 |
|||||
| 0.737" | 1.625" |
SM6092021-18 $22.00 |
|||||
| 1.750" |
MGK102054-01 $17.50 |
MGK10205404-18 $25.60 |
MGK10205403-2 $35.00 (2 speed) |
||||
|
CN451-36 OEM w/spring $22.50 |
CN451-18 OEM w/springs $22.50 |
CN451-12 OEM w/springs $52.50 |
CN451-2 (2-speed) OEM w/springs $42.50 |
||||
| 2.250 |
MS203-36 $25.20 MS203-36(50Hz) $27.50 |
MS203-18 $22.00 |
MS203-12 $23.00 |
MS203-9 (900rpm) $24.00 LN250014-2 $20.00 (2 speed) LN002500.16 $23.50 (50Hz, 2 speed) |
|||
|

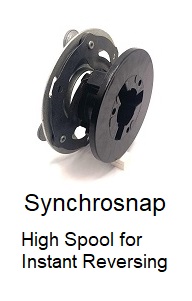

2.250" for instant reversing high spool |
DO11-36 $33.90 |
DO11-18 $41.10 |
DO11-12 $52.10 |
||||
| 2.250" |
LN56-36 OEM w/springs $23.50 LN56-36(50Hz) OEM w/springs $23.50 |
LN56-18 OEM w/springs $23.50 LN56-18(50Hz) OEM w/springs $23.50 |
LN56spool Broken spool? Replacement plastic spool for LN56-18 & LN56-36 $12.50 |
||||
| 2.750" |
MIA7067B-18 $18.50 |
||||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 0.742" | 2.000" |
JHAZ5401-18 $20.50 |
|||||
| 2.250" |
JHD5401-36 $21.50 |
JHAK5401-18 $20.50 |
JHAK5401-2P $28.00 (2 speed) |
||||
| 0.745" | 1.500" |
MS6013942A-36 $21.50 |
|||||
| 2.25" |
FR297949902-36 $21.50 |
FR297949-901 $26.25 |
|||||
| 2.750" |
BR6599-18 $26.25 |
||||||
|
19mm (0.748") w/collar & set screws |
34mm |
T60R19-36S OEM w/springs $31.50 |
T60R19-18S OEM w/springs $33.50 |
||||
| 46mm |
T60R19-36 $31.50 |
T60R19-18 $33.50 |
|||||
| 58mm |
T80R19-36 $31.50 |
||||||
|
19mm (0.748") press-on to shaft |
54mm |
T80R19-18 $33.50 |
|||||
| 0.750" | 1.875" |
GE303-36 OEM w/spring $32.50 |
GE303-18 OEM w/springs $32.50 |
GE303-9 (900 rpm) OEM w/springs $32.50 GE303-15 (1500 rpm) OEM w/springs $32.50 GE303-30 (3000 rpm) OEM w/springs $32.50 |
|||
| 2.000" |
EM77-36 OEM w/springs & mounting fingers $46.50 |
EM77-18 OEM w/springs & mounting fingers $46.50 |
|||||
| 0.752" | 1.750" |
PE61202-18 $27.50 |
RMC33003G1-12 $25.50 |
||||
| 2.250" |
PL828181000-36 $22.50 |
PL828180100-18 $27.50 |
PL828180200-12 $25.50 |
PL828180300-9 $27.50 (900rpm) |
|||
| 0.761" | 1.375" |
GE35-36 OEM w/springs $35.00 |
|||||
|
0.774" 19.66mm |
2.000" 50mm |
T19R19-36 OEM w/springs, through bolt & split plate $25.00 |
|||||
|
0.779" Marathon w/knurling |
1.875" |
MR56-36 OEM w/springs $19.50 Many Types Link to Marathon Page |
MR56-18 OEM w/springs $19.50 Many Types Link to Marathon Page |
||||
| 0.780" | 2.250" |
BA9001A22-18 $21.50 |
|||||
|
0.793" 20mm |
2.250" |
BA9001A13-18 $29.00 |
BA9001A23-12 $21.50 |
BA9001A15-2 $22.50 (2 speed) |
|||
| 62mm |
T80R20-36 OEM w/springs $31.50 |
T80R20-18 OEM w/springs $31.50 |
|||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 0.806" | 2.250" |
BA56-36T 2.60" plate diameter $24.50 BA56-36TS 2.40" plate diameter $24.50 |
BA56-18T $25.85 |
MASWIT01601-12 $22.00 |
BA56-2T (2 speed) $24.50 |
||
| 0.812" | 1.750" |
JHCC22-682-18 $26.50 |
|||||
| 2.000" |
JHCC22-694-36 $23.50 |
DR218370-1-18 $26.50 |
|||||
|
2.187" Small mechanism: Chassis: 1.37" x 2.07" Large mechanis,: Chassis: 1.53" x 2.69" |
BA56-36 OEM w/springs Small mechanism $59.50 BA56-36W OEM w/springs Large mechanism $52.50 |
BA56-18 OEM w/springs Small mechanism $62.50 BA56-18W OEM w/springs Large mechanism $52.50 |
BA56-12 OEM w/springs Small mechanism $52.50 |
||||
| 2.250" |
LSA4121A3-36 $23.50 |
LSA4141C6-18 $26.50 |
MIA7067O-12 $31.00 |
||||
| 2.750" |
JH102-36 $23.50 |
JH102-18 $26.50 |
LA8S981-03-12 $31.00 |
JH102-36/18 $33.50 (2 speed) JH102-18/12 $33.50 (2 speed) |
|||
| 0.847" | 2.250" |
WH678D970H04-36 $24.50 |
WH678D970H02-18 $27.50 |
WH678D970H05-12 $37.50 |
|||
| 2.750" |
NM101138V1-36 $24.50 |
NM101138V2-18 $27.50 |
|||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 0.858"/0.859" | 1.875" |
WH368C116A07-18 $27.50 |
WH368C116A05-12 $37.50 |
||||
| 2.250" |
MS503-36 $24.50 |
MS503-18 $27.50 |
MS503-12 $37.50 |
MS503-9 (900rpm) $39.50 |
|||
| 2.375" |
WH603-36B $24.50 |
WH603-18B $32.00 |
WH603-12B $37.50 |
||||
| 2.750" |
BR12085-18 $28.00 |
||||||
|
22mm (0.866") |
46mm |
T60R22-36 w/collar & set screws $43.75 |
T60R22-18 w/collar & set screws $46.75 |
||||
| 56mm |
T80R22-36 w/collar & set screws $47.50 |
||||||
| 62mm |
T80R22-36 press-on to shaft $31.50 |
||||||
| 0.869" | 1.812" |
RM1003371011-36 $25.50 |
|||||
| 2.000" |
LN251202-18 $28.00 |
LN251203-12 $33.50 |
|||||
|
2.000" for instant reversing high spool |
DO11-36A $35.50 |
DO11-18A $43.10 |
DO11-12A $54.55 |
||||
| 2.250" |
DO12-36 $25.50 |
DO12-18 $28.00 |
DO12-12 $33.50 |
DO12-9 (900rpm) $39.50 |
|||
| 2.750" |
DO8-36 $25.50 |
DO8-18 $28.00 |
DO8-12 $33.50 |
DO8-9 (900rpm) $39.50 |
|||
| 0.875" | 2.062" |
GE304-36 $32.50 |
GE304-18 $32.50 |
GE304-9 (900rpm> $32.50 GE304-10 (900rpm, 50Hz) $32.50 |
|||
|
23mm (0.906") |
52mm (2.05") |
T80R23-18 $37.50 |
|||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 0.932" | 2.250" |
CN314605G01-36 $26.50 |
CN314605G02-18 $28.50 |
CN314605G03-12 $34.50 |
CN314605G04-9 $41.50 (900rpm) |
||
| 2.750" |
PL828310200-36 $26.50 |
JHN5401-18 $28.50 |
MS6013944F-12 $34.50 |
MS6013944J-9 $41.50 (900rpm) HAM5401-2 $41.50 (2 speed) |
|||
|
0.950" w/collar & set screws |
2.85" |
GE9700-18 $22.50 |
|||||
|
0.985" 25mm |
2.250" |
MS204-36 $26.50 |
MS204-18 $29.50 |
MS204-12 $29.50 |
MS204-9 (900rpm) $39.50 |
||
|
2.750" 70mm |
DO15-36 $26.50 T90R25-36 OEM w/springs $31.50 |
DO15-18 $29.50 T90R25-18 OEM w/springs $31.50 |
DO15-12 $29.50 |
DO15-9 (900rpm) $39.50 |
|||
| 1.000" | 3.562" |
PL828380800-18 $47.10 |
|||||
| 1.003" | 2.875" |
KO25078205-36 $38.50 |
KO25078203-18 $40.50 |
MOMX300660-12 $48.50 |
|||
| 1.05" | 2.875" |
DO4-36 $38.50 |
DO4-18 $40.50 |
DO4-12 $48.50 |
DO4-9 (900rpm) $49.50 |
||
|
1.063" 27mm |
2.75" 70mm |
T90R27-18 OEM w/springs $31.50 |
|||||
| 1.118" | 3.56" |
BA9000A19-36 $45.25 |
|||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\'s | ||
| 1.125" | 2.750" |
CN518-36 OEM w/springs $82.50 |
CN518-18 OEM w/springs $82.50 |
||||
| 3.625" |
BA184-36 OEM w/springs $65.50 |
BA184-18 OEM w/springs $76.50 |
BA184-12 OEM w/springs $77.50 |
||||
| 1.127" | 2.875" |
PL107-36 $43.50 |
PL107-18 $47.50 |
GE291A4476-02-12 $58.50 |
GE291A4476-03-9 $59.50 (900rpm) |
||
| 3.000" |
LN2P60TC $32.50 LN2P50TC Special for 50Hz $36.50 |
LN4P60TC $28.95 LN4P50TC Special for 50Hz $36.50 |
LN6P60TC $30.95 |
||||
| 3.250" |
SHSM26210-36 $43.50 |
SHSM46210-18 $45.90 |
SHSM66210-12 $50.50 |
||||
| 3.562" |
BA9000A11-36 $45.25 |
BA9000A09-18 $47.50 |
|||||
| 1.168" | 2.875" |
GE803-36 $38.50 |
GE803-18 $40.50 |
GE803-12 $50.50 |
|||
| 1.17" | 2.875" |
GE803-36F (w/fan) $50.00 |
GE803-18F (w/fan) $100.00 |
GE803-12F (w/fan) $100.00 |
GE803-9F (w/fan) $100.00 (900rpm) |
||
| 1.187" | 2.875" |
US906008-36 OEM w/springs $58.00 |
US903012-18 OEM w/springs $50.00 |
||||
| 3.250" |
MS6013945A-36 $55.50 |
MS6013945B-18 $47.50 |
MS6013945C-12 $58.25 |
||||
| 3.312" |
WEG60-36 OEM w/springs $99.50 |
WEG60-18 OEM w/springs $99.50 |
WEG60-12 OEM w/springs $99.50 |
||||
| 3.562" |
MSR182-36 $55.50 |
MSR182-18 $47.50 |
MSR182-12 $58.28 |
||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 1.219" | 2.875" |
MS150252-36 $38.50 |
MS150254-18 $40.50 |
MS150256-12 $50.50 |
MS150258-9 (900rpm) $63.50 |
||
| 1.223" | 2.875" |
US906051-36 OEM w/springs $62.50 |
DO904480-18 OEM w/springs $56.50 |
||||
| 1.231" | 2.875" |
DO16-36 $38.50 |
DO16-18 $40.50 |
EA4-12 $50.50 |
DO16-9 (900rpm) $63.50 |
||
| 3.250" |
WEG60-36AE $38.50 |
WEG60-18AE $40.50 |
LA8S98303-12 $50.50 |
||||
| 3.562" |
RM1003405005-36 $38.50 |
RM1003405001-18 $47.50 |
|||||
|
32mm (1.260") w/collar & set screws |
56mm |
T80R32-36 $37.50 |
T80R32-18 $37.50 |
||||
| 1.281" | 2.875" |
ARCO85068-36 $38.50 |
ARCO85068-18 $40.50 |
ARCO85068-12 $52.50 |
|||
| 1.325" | 2.875" |
BBC57520A-36 $45.50 |
LN213-18 $47.50 |
BBC57520C-12 $52.50 |
|||
| 3.562" |
LN213-36B $45.50 |
LN213-18B $47.50 |
|||||
|
34mm (1.338") press-on to shaft |
86mm (3.386") |
T100R34-36 $34.50 |
T100R34-18 $34.50 |
||||
| 1.345" | 2.875" |
MR3D-36 OEM w/springs $44.00 |
MR3D-18 OEM w/springs $44.00 |
||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 1.356" | 2.875" |
MRBS675271-36 $49.75 |
MRBS675272-18 $53.50 |
MRBS675273-12 $66.00 |
|||
| 3.250" |
GE808-36 $49.75 |
GE808-18 $53.50 |
GE808-12 $66.00 |
GE808-9 (900rpm) $70.00 |
|||
| 1.375" | 2.875" |
PL105-36 $45.75 |
PL105-18 $47.50 |
PL105-12 $54.50 |
|||
| 3.250" |
MS6013945J-36 $45.75 |
MS6013945K-18 $47.50 |
MS6013945M-12 $54.50 |
||||
| 3.562" |
BA9000A01-36 $45.75 |
PL104-18 $47.50 |
BA9000A03-12 $68.50 |
||||
| 3.625" |
BA213-36 OEM w/springs $75.00 |
BA213-18 OEM w/springs $75.00 |
BA213-12 OEM w/springs $75.00 |
||||
| 1.437" | 2.750" |
CN511-36 OEM w/springs $82.50 |
CN511-18 OEM w/springs $82.50 |
CN511-12 OEM w/springs $82.50 |
|||
| 3.500" |
CN512-36 OEM w/springs $82.50 |
CN512-18 OEM w/springs $82.50 |
CN512-12 OEM w/springs $82.50 |
||||
| 1.443" | 2.875" |
LSC8321A6-36 $43.75 |
LSC8341J6-18 $45.50 |
||||
| 3.250" |
MS150109-36 $43.75 |
MS150111-18 $45.50 |
MS150113-12 $58.25 |
||||
| 3.562" |
CN611-36 $43.75 |
CN611-18 $45.50 |
CN611-12 $58.25 |
||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 1.478" | 2.875" |
MR105-36 $39.50 |
MR105-18 $41.50 |
MR105-12 $54.50 |
WH26B7484G25-9 $57.50 (900rpm) |
||
| 3.250" |
WH127-36 $39.50 |
WH127-18 $41.50 |
WH127-12 $54.50 |
WH127-9 (900rpm) $57.50 |
|||
| 3.562" |
WH128-36 $39.50 |
WH128-18 $41.50 |
PL828600200-12 $54.50 |
||||
| 1.581" | 2.875" |
SM6080723-36 $39.50 |
|||||
| 3.562" |
SMK73227161-36 $39.50 |
DO648701-18 $41.50 |
SMK73227163-12 $56.50 |
||||
| 1.597" | 2.875" |
GE805-36 $45.50 |
GE805-18 $48.50 |
GE805-12 $68.75 |
|||
| 3.562" |
BA9000A06-36 $45.50 |
BA9000A14-18 $48.50 BA9000A05-18 with inverted backplate $48.50 |
BA9000A08-12 $49.50 |
||||
|
Inner Diam. (bore) |
Outer diam. Spool |
3600rpm Switch |
1800rpm Switch |
1200rpm Switch |
Other rpm\\\\\\\\\\\\\\\\\\\\\\\\\\'s | ||
| 1.605" | 3.250" |
GE807-36 $43.50 |
GE807-18 $44.50 |
GE807-12 $59.50 |
GE807-9 (900rpm) $61.50 |
||
| 4.500" |
GE153B4313-36 $43.50 |
GE153B4313-18 $44.50 |
GE153B4313-12 $59.50 |
||||
| 1.63" | 1.63" |
CM35735-18 $44.50 |
|||||
| 1.69" | 3.562" |
PL108-18 Call for availability |
|||||
|
Centrifugal Mechanisms AO Smith Baldor Bell & Gosett Bodine Centrifugal Mechanisms Century Doerr Electra Emerson Flint & Walling Fan & Limit Franklin General Electric Hobart/Jack & Heinz Leeson Leland Magnetek Magnetics International Marathon Master Peerless Reliance Tatung Toshiba US Wagner Weg Westinghouse |
|||||||
