General Electric Switches
H.S. Number: 8503.00.500
AO Smith    Baldor    Bell & Gosett    Bodine    Centrifugal Mechanisms    Century    Doerr    Electra
Emerson    Flint & Walling    Fan & Limit   Franklin    General Electric    Hobart/Jack & Heinz    Leeson    Leland
Magnetek    Marathon    Master    Reliance    Tatung    Toshiba    US    Wagner    Weg    Westinghouse


2.250" c-c mounting holes

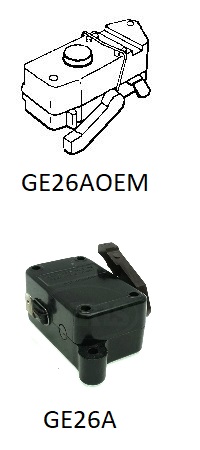

GE26A (1 set of contacts)   $41.00
Works in most applications
Needs 1.625" wide clearance

GE26AOEM (1 set of contacts)
2.187" c-c mounting holes
Body is 1.000" wide
Obsolete - No replacement


GE26B (2 sets of contacts)
Obsolete - No replacement

17mm id 2.000" spool od

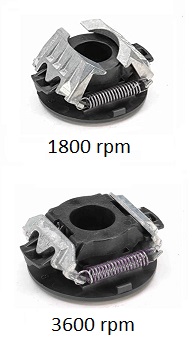

GE701R18 (1800rpm)   $37.00
phosphorus springs
GE701R36 (3600rpm)   $37.00
blue springs
GE701R2 (2 speed)   $37.00
purple springs

0.750" id 1.875" spool od


GE303-9 (900rpm)   $32.50
GE303-15 (1600rpm 50Hz)   $32.50
GE303-18 (1800rpm)   $32.50
GE303-30 (3600rpm 50Hz)   $32.50
GE303-36 (3600rpm)   $32.50

0.761" id 1.375" spool od


GE35-36 (3600rpm)   $35.00

0.875" id 2.062" spool od

GE304-9 (900rpm)   $32.50
GE304-10 (900rpm 50Hz)   $32.50
GE304-18 (1800rpm)   $32.50
GE304-36 (3600rpm)   $32.50


0.950" id 2.850" spool od

GE9700-18 (1800rpm)   $22.50





Go Here to See The Entire List
3.625" c-c mounting holes
GE701 (1 set of contacts)   $65.00
GE701-2 (3 sets of contacts)   $65.00
Two speed



GE701TS Drawing
2.312" c-c mounting holes

GE-A956 (1 speed/1 sets of contacts)   $20.00
958DAP217A2C11045

GE701TS (2 speed/2 sets of contacts)   $35.00
958DBP215B5A1032




GE1129 Drawing


Board is 5.25" wide

Terminals:
L1: Two QM250 + One QM187
L2: Two QM250
H: One QM250

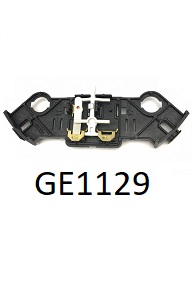

GE1129 (1 set of contacts)   $34.50
958EAP218A6B11723

Terminals:
1: Two QM250
7: One QM250
11: One QM208
17: One QM208
L1: Two QM250 + One QM208
L2: Two QM250
H: One QM250


GE1129A (1 set of contacts)   $34.50
958EAP118A9B11341

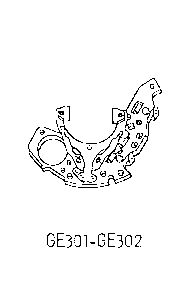

48 frame - 2.125" span
(sets of contacts + # of terminals + # of bolts)
  GE301B (2+2+0)   $54.00
GE301E (reversing)   $130.00
GE301H (2+11+3)   $40.00
GE301J (1+11+2)   $44.00
GE301K (1+1+2)   $40.00
GE301M (1+4+2)   $40.00
GE301N (3+11+3)   $47.00
GE301R (2+1+0)   $52.00
GE301X (1+10+3)   $40.00
GE301Y (1+10+3)   $40.00


56 frame - 2.375" span
(sets of contacts + # of terminals + # of bolts)

GE302A (1+1+0)   $40.00
GE302B (2+0+0)   $60.00
GE302E (1+8+2)   $40.00
GE302G (3+10+3)   $60.00

GE9700
                Drawing
3.000" c-c mounting holes

GE9700 (1 set of contacts)   $65.00

Dustite
1.875" c-c mounting holes

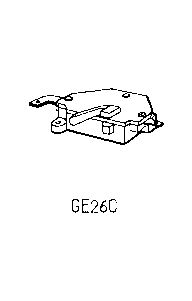

GE26C ( 1 set of contacts)   $37.50



Dustite
1.875" c-c mounting holes

GE9005 (1 set of contacts)   $40.50



Dustite
1.875" c-c mounting holes

GE26D (2 sets of contacts)   $64.50






Dustite
1.875" c-c mounting holes

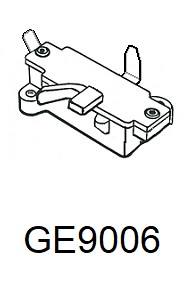

GE9006 (1 sets of contacts)   $40.50






Dustite
1.875" c-c mounting holes

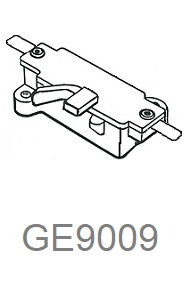

GE9009 (1 sets of contacts)   $41.50
