AO Smith Switches
 H.S. Number: 8503.00.500
AO Smith    Baldor    Bell & Gosett    Bodine    Centrifugal Mechanisms    Century    Doerr    Electra
Emerson    Flint & Walling    Fan & Limit   Franklin    General Electric    Hobart/Jack & Heinz    Leeson    Leland
Magnetek    Marathon    Master    Reliance    Tatung    Toshiba    US    Wagner    Weg    Westinghouse

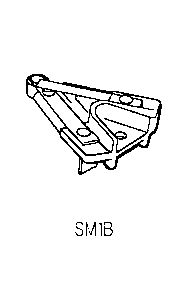

SM1B   $13.75
1 set of contacts
0.437" c-c mounting holes

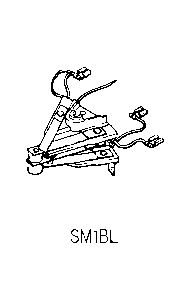

SM1BL   $56.00
3 sets of cantacts
0.437" c-c mounting holes		 SM1C Drawing

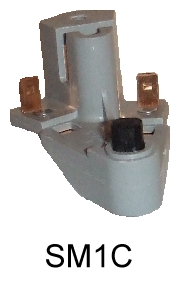

SM1C     $28.90
1 set of contacts
0.667" c-c mounting holes		 LN503 Drawing
SM36C104 (aka LN503)   $30.80
36C10401
 SM56-36 Drawing
3600rpm shown (1800rpm has thinner spring)
Mounts end of shaft
Rectangular bore: 0.509" x 0.262"

SM56-18 (1800rpm)   $16.50

SM56-36 (3600rpm)   $17.50

SM56-36(50Hz) (3600rpm)   $17.50
0.496" id  2.250" spool od
SM610175X-18 (1800rpm)
OBSOLETE


0.687" id  2.250" spool od
SM148-18 (1800rpm)   $25.80

SM148-36 (3600rpm)   $24.00

Rotating Switch Drawing
0.625" id  2.000" spool od
CN701-18 (1800rpm)   $27.50
CN701-36 (3600rpm)   $27.50

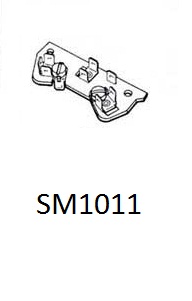

SM1011 Drawing
4 terminal positions
2.375" c-c mounting holes
SM1011     $25.50

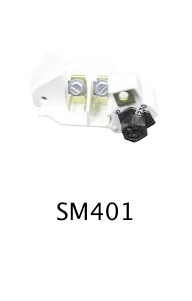

 SM401 Drawing
US PAT #6882070
ASSEMBLY #628401
115/230 Voltage selector
Single mounting hole
SM401     $20.00

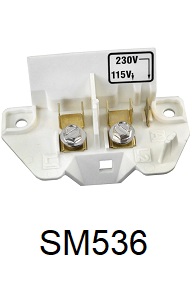

 SM536 Drawing
626531 A
1230V 115V
2.375" c-c mounting holes
SM536     $17.50
 WH2049 Drawing
3926C07A01
5.25" c-c mounting holes
WH2049     $162.50
