Klixon 8347 and 8348 Series
Supplementary overload

Series Specification Sheet page 1 (pdf)
Series Specification Sheet page 2 (pdf)
Wiring Diagram (pdf)

Klixon 8347 Drawing                Klixon
                  8348 Drawing

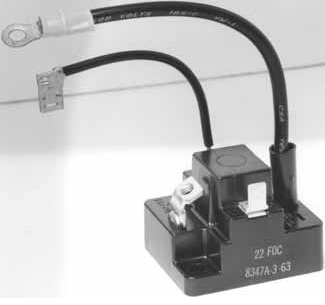

Klixon 8347                        Klixon 8348

   The 8347 and 8348 supplementary overloads are automatic, disc-type, quick-trip devices that sense and operate on locked rotor current. They respond to motor current only. These controls were developed to supplement Klixon motor winding thermostats in protection systems for hermetically-sealed compressors from 2 to 12 horsepower and three-phase motors. Motor winding thermostats used alone often do not provide adequate protection on locked rotors since termperature responsive devices may not react quickly enough.
Warning

This series is obsolete from Klixon
We provide exact matches when available,
or substitutes with the same rating when required.
Let us know if you cannot use a substitute.


Price: $65.50 each

8347... »

8348... »

Some specifications:
8347A-3-63: 3hp, 208/230VAC
8347A-3-67: 4hp, 240/208VAC
8347A-5-78: 5hp, 230VAC
8347A-5-79: 5hp, 208/240VAC
8347A-7-13: SPST
8347A-23-29: 23 Contact Amps, LRA: 82A, 6-16 sec., SPST 325/125VA @ 110-600/24V K/7
8347A-23-33: 17.5 Contact Amps, LRA: 62A, First Cycle Trip: 44A, 6-16 sec, SPST 325/125VA @ 110/600/24V C/5
8347A-23-40: 15 Contact Amps, LRA: 57A, 6-16 sec, SPST 325/125VA @ 110-600/24V J/8
8347A-23-42: 9.5 Contact Amps, LRA: 35A, First Cycle Trip: 30.5A, 6-16 sec, SPST 345/125VA @ 110-600/24V A/2
8347A-23-53: 10.9 Contact Amps, LRA: 42A, 6-16 sec, SPST 325/125VA @ 110-600/24V G/8
8347A-23-63: 27.8 Contact Amps, LRA: 77A, 6-16 sec, SPST 345/125V @ 110-600/24V
8347A-23-71: 35 Contact Amps, LRA: 115A, First Cycle Trip: 91A, 6-16 sec, SPST 325/125VA @ 110-600/24V H/9
8347A-23-86: 6.6 Contact Amps, LRA: 22A, First Cycle Trip: 19A, 6/16 sec, SPST 325/125VA @ 110/600/24V L/8
8347A-23-92: 5.2 Contact Amps, LRA: 18A, First Cycle Trip: 14A, 6/1, SPSP 325/125VA @ 110/600/24V
8347A-30-69: 25 Contact Amps, LRA: 86A, First Cycle Trip: 78A, 6-16 sec, SPST 325/125VA @ 110-600/24V
8347A-32-12: 30 Contact Amps, First Cycle Trip: 72A, SPST 325/125VA @ 110-600/24V
8347A-32-19: 19 Contact Amps, LRA: 63A, 6-16 sec., SPST 325/125VA @ 110-600/24V M/7
8348A-7-4: 33 Contact Amps, LRA: 143A, First Cycle Trip: 112A, 6-16 sec., SPST 325/125VA @ 110-600/24V M/3
8348A-17-9: Full Load: 46.2A, LRA: 128A, First Cycle Trip: 115A, SPST 345/125VA @ 110-600/24V K/5
8348B-45-10: Full Load: 72A, LRA: 191A, First Cycle Trip: 180A, SPST 345/125VA @ 110-600/24V K/9
8348B-7-13: 55.5 Contact Amps, LRA: 153A, 6-16 sec., SPST 325/125VA @ 110-600/24V, First Cycle Trip: 147A



Series Terminal Configurations
e.g. 8348A-**-2
First Suffix Terminal 1 Terminal 2 Terminal 3 Terminal 4
3 3.5" Ins. Wire
QFF-0.250"
QM-0.250" 6" Ins. Wire
O-0.187"
Screw
4 4" Ins. Wire
QFF-0.250"
QM-0.250" 6" Ins. Wire
O-0.187"
Screw
5 3.75" Ins. Wire
QFF-0.250"
QM-0.250" 6" Ins. Wire
O-0.187"
Screw
6 3.75" Ins. Wire
QFF-0.250"
QM-0.250" 6" Ins. Wire
O-0.187"
Screw
7 QM-0.250" QM-0.250" Screw Screw
10 3.5" Ins. wire
QFF-0.281"
QM-0.250" 4.5" Ins. wire
O-0.187"
Screw
13 QM-0.250" QM-0.250" 6" Ins. Wire
O-0.187"
Lug & Screw
17 QM-0.250" QM-0.250" 8.25" Ins. Wire
O-0.187"
Screw
19 3.5" Ins. Wire
QFF-0.250"
QM-0.250" 5.5" Ins. Wire
O-0.187"
Screw
21 QM-0.250" QM-0.250" 6.5" Ins. Wire
O-0.187"
Lug & Screw
23 QM-0.250" QM-0.250" QMF-0.250" QMF-0.250"
28 3.5" Ins. Wire
QFF-0.250"
QM-0.250" 6.5" Ins. Wire
O-0.187"
Screw
30 QM-0.250" QM-0.250" Extended Screw Screw
32 QM-0.250" QM-0.250" Screw Screw
34 QM-0.250" QM-0.250" 6" ins. wire Screw
35 QM-0.250" QM-0.250" 8" ins. wire Screw
45 QM-0.250" QM-0.250" 6.5" Ins. Wire
O-0.250"
Screw
8347-83749 3.75" Ins. wire
QFF-0.281"
QM-0.250" 5.5" Ins. wire
O-0.198"
Screw

Master list (order above):
8347-83749, 8347A2-16, 8347A-2-16, 8347A2-20, 8347A-2-20, 8347A3-63, 8347A-3-63, 8347A3-67, 8347A-3-67, 8347A4-6, 8347A-4-6, 8347A4-64, 8347A-4-64, 8347A4-68, 8347A-4-68, 8347A5-65, 8347A-5-65, 8347A5-69, 8347A-5-69, 8347A5-78, 8347A-5-78, 8347A5-79, 8347A-5-79 8347A6-73, 8347A-6-73, 8347A6-74, 8347A-6-74, 8347A6-81, 8347A-6-81, 8347A-7-13, 8347A7-13, 8347A7-15, 8347A-7-15, 8347A-7-53, 8347A7-53, 8347A7-116, 8347A-7-116, 8347A8-15, 8347A-8-15, 8347A12-76, 8347A-12-76, 8347A17-9, 8347A-17-9, 8347A19-15, 8347A-19-15, 8347A19-21, 8347A-19-21, 8347A-21-9, 8347A21-12, 8347A-21-12, 8347A23-18, 8347A-23-18 8347A23-19, 8347A-23-19, 8347A23-20, 8347A-23-20, 8347A-23-29, 8347A23-31, 8347A-23-31, 8347A23-33, 8347A-23-33, 8347A23-40, 8347A-23-40, 8347A23-42, 8347A-23-42, 8347A23-53, 8347A-23-53, 8347A23-56, 8347A-23-56, 8347A23-63, 8347A-23-63, 8347A30-69, 8347A-30-69, 8347A23-71, 8347A-23-71, 8347A23-86, 8347A-23-86, 8347A23-92, 8347A-23-92, 8347A32-25, 8347A-32-12, 8347A-32-19, 8347A32-19, 8347A-32-25, 8347A-34-16, 8347A34-16, 8347A-35-30, 8347A35-30, 8347A42-21, 8347A-42-21, 8347E19-24, 8347E-19-24, 8347E19-26, 8347E-19-26, 8348A3-12, 8348A-3-12, 8348A3-30, 8348A-3-30, 8348A4-64, 8348A-4-64, 8348A4-68, 8348A-4-68, 8348A-7-2, 8348A-7-4, 8348A7-4, 8348A-7-9, 8348A17-9, 8348A-7-13, 8348A7-13, 8348A10-13, 8348A10-13, 8348A-17-9, 8348A19-4, 8348A-19-4, 8348A19-11, 8348A-19-11, 8348A-21-9, 8348B5-17, 8348B-5-17, 8348B7-10, 8348B-7-10, 8348B-7-11, 8348B7-13, 8348B-7-13, 8348B7-33, 8348B-7-33, 8348B10-20, 8348B-10-20, 8348B13-4, 8348B-13-4, 8348B13-17, 8348B-13-17, 8348B-13-21, 8348B-19-11, 8348B19-11,8348B-19-13, 8348B19-13, 8348B21-18, 8348B-21-18, 8348B23-13, 8348B-23-13, 8348B-28-20, 8348B28-20, 8348C13-4, 8348C-13-4, 8348V-13-4
