Motor Mounts

of rubber and steel


Part
i.d. o.d. w. Notes
GE11MM $8.50/each
$16.00/pair
1.281" 1.812" 0.312" mount1, Fasco, GE
BG10 $7.50/each
$14.00/pair
1.468" 2.500" 0.375" mount1, Bell & Gossett
BA310R $16.50/each
$31.50/pair
1.500" 2.000" 0.437" mount1, Baldor
RM1000A04 $12.50/each
$23.50/pair
1.500" 2.500" 0.437" mount1, Baldor
GE310 $6.75/each
$13.00/pair
1.625" 2.250" 0.375" mount1, GE, Marathon
CN206A $10.50/each
$20.50/pair
1.687" 2.500" 0.375" mount1, Century
WA418 $6.90/each
$13.50/pair
1.687" 2.500" 0.437" mount1
Baldor: RM1000A02SP
Doerr: 29A00495-01-00
Franklin: 292316-105
Bell & Gossett: 118227 and 118228
GE310A Obsolete. 1.875" 2.500" 0.437" mount1, GE 56 frame



Part
id1 id2 od w Notes
WH90A $14.50/each
$27.50/pair
1.562" 1.700" 2.250" 0.375" mount2, Westinghouse
WH90 $16.50/each
$32.00/pair
1.562" 1.770" 2.500" 0.375" mount2, Westinghouse
WH90B $8.00/each
$15.00/pair
1.682" 1.875" 2.500" 0.462" mount2, Westinghouse



Part
i.d. o.d. w Notes
GE310B $7.50/each
$14.00/pair
1.687" 2.250" 0.437" mount3, GE 48 frame form G
GE310DformG $15.00/each
$28.50/pair
1.687" 2.500" 0.437" mount3, GE 56 frame form G



Part
i.d. o.d. w Notes
EM73S $11.50/each
$21.00/pair
1.625" 2.250" 0.562" mount4, Emerson 48 frame
EM73 $12.50/each
$24.00/pair
1.625" 2.500" 0.562" mount4, Emerson 56 frame



Part
i.d. o.d. w Notes
MR148E $4.75/each
$9.00/pair
1.437" 2.250" 0.375" mount5, Marathon
48 frame
MR148D $4.75/each
$9.00/pair
1.437" 2.500" 0.375" mount5, Marathon
56 frame
GE310D $15.00/each
$28.50/pair
1.500" 2.500" 0.375" mount5, GE
CN310D $4.50/each
$8.50/pair
1.57" 2.500" 0.312" mount5, Century



Part
i.d. o.d. w Notes
MR310N $4.50/each
$9.00/pair
1.570" 2.500" 0.312" mount6, Marathon



Part
Notes
MR48 $2.50/each
$5.00/pair
For 48 frame 2.250" o.d. mounts above
MR56 $3.50/each
$7.00/pair
For 56 frame 2.500" o.d. mounts above
MR48/56ring $9.00/pair
$18.00/four
To expand 2.25" rings to 2.50" outer diameter. Two are required for each mount.


Shaft
                Adapter Drawing
Part Price
i.d. o.d. length Notes
Adapter187250 $5.95
0.187" 0.250" 1.000"
Adapter250312 $6.25
0.250" 0.312" 1.000"
Adapter250375 $6.25
0.250" 0.375" 1.062"
Adapter312375 $8.25
0.312" 0.375" 1.062"
Adapter312500 $9.25
0.312" 0.500" 1.250"
Adapter375437 $9.25
0.375" 0.437" 1.062"
Adapter375500 $9.25
0.375" 0.500" 1.000"
Adapter500625 $9.50
0.500" 0.625" 1.250" w/key
Adapter625750 $9.95
0.625" 0.750" 1.250"
Adapter750100 $9.95
0.750" 1.000" 1.250"
Adapter875100 $9.95
0.875" 1.000" 1.312"





Connection
                Block Drawing

Terminal Blocks with 1 stud
Harmonization Schedule (HS) and Schedule B Number: 85369085
Part Price
Board Stud Mounting Notes
TB0.312x1x1black
Black Thermoplastic
$32.50
Thermoplastic
1.50" x 3.00"
0.312" diam.
1.592" tall
0.312" diam.
2.000" center-to-center
300V AC/DC, stainless
TB0.312x1x1red
Red Thermoplastic
$32.50
Thermoplastic
1.50" x 3.00"
0.312" diam.
1.592" tall
0.312" diam.
2.000" center-to-center
300V AC/DC, stainless
TB0.375x1x1black
Black Thermoplastic
$34.50
Thermoplastic
1.50" x 3.00"
0.375" diam.
1.850" tall
0.312" diam.
2.000" center-to-center
300V AC/DC, stainless
TB0.375x1x1red
Red Thermoplastic
$34.50
Thermoplastic
1.50" x 3.00"
0.375" diam.
1.850" tall
0.312" diam.
2.000" center-to-center
300V AC/DC, stainless


Ceramic Terminal
                Block Drawing Plastic Terminal
                Block Drawing

Terminal Blocks with 4 studs
Harmonization Schedule (HS) and Schedule B Number: 85369085
Part Price
Board Studs Mounting Notes
TB2x2ceramic32x40
Ceramic 2x2
$25.00
Ceramic
32mm x 40mm
1.25" x 1.56"
#8-7/16
0.875" C-C
0.187" diam. Includes nuts & links
TB715S902
Plastic 2x2
$65.00
Plastic
1.187" x 1.472"
0.187" diam. x
0.425" top
0.375" bottom
Slides into rectangle:
1.125" x 1.062"
80 Amp, Panel mount
Feed through


Terminal
                Block Drawing          Ceramic Terminal
                Block Drawing          Ceramic Terminal
                Block Drawing

Terminal Blocks with 6 studs
Harmonization Schedule (HS) and Schedule B Number: 85369085
Part Price
Board Studs Mounting Notes
TB4M25x40
Polyester Terminal Block
$24.50
Polyester
25mm x 40mm
M4x12mm
15mm C-C
5mm diam.
12-18mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB4M32x50
Polyester Terminal Block
$31.50
Polyester
32mm x 50mm
M4x12mm
18mm C-C
5.5mm diam.
15-21mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB4M32x50LN
TB Leeson Style Terminal Block
$28.50
Polyester
32mm x 50mm
M4x12mm
20mm C-C
One round, One oval
20mm C-C
Six Terminals: W2, U2, V2, U1, V1, W1
TB3x2ceramic32x62
Ceramic 3x2
$25.50
Ceramic
32mm x 62mm
1.25" x 2.44"
#8-7/16
0.875" C-C
0.187" diam.
0.875" C-C
Includes nuts & links
TB4M34x54
Polyester Terminal Block
$29.50
Polyester
34mm x 54mm
M4x16mm
20mm C-C
5.5mm diam.
20mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB5M36x56
Polyester Terminal Block
$27.50
Polyester
36mm x 56mm
M5x15mm
20mm C-C
6mm diam.
16-23mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB5M40x64
Polyester Terminal Block
$40.50
Polyester
40mm x 64mm
M5x18mm
23mm C-C
5.5mm diam.
23mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB6M45x70
Polyester Terminal Block
$32.50
Polyester
45mm x 70mm
M6x20mm
25mm C-C
7mm diam.
21-29mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB6M48x78
Polyester Terminal Block
$49.50
Polyester
48mm x 78mm
M6x23mm
28mm C-C
6.6mm diam.
28mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB8M60x95
Polyester Terminal Block
$49.50
Polyester
60mm x 95mm
M8x25mm
35mm C-C
7.5mm diam.
29-39mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB8M60x96
Polyester Terminal Block
$60.50
Polyester
60mm x 96mm
M8x28mm
35mm C-C
9mm diam.
35mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB10M70x115
Polyester Terminal Block
$91.50
Polyester
70mm x 115mm
M10x28mm
45mm C-C
10mm diam.
40-47mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB10M75x120
Polyester Terminal Block
$92.50
Polyester
75mm x 120mm
M10x34mm
45mm C-C
11mm diam.
45mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB12M80x125
Polyester Terminal Block
$143.50
Polyester
80mm x 125mm
M12x32mm
45mm C-C
11mm diam.
40-49mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB12M95x150
Polyester Terminal Block
$195.00
Polyester
95mm x 150mm
M12x40mm
55mm C-C
11mm diam.
55mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1
TB16M100x165
Polyester Terminal Block
$303.50
Polyester
100mm x 165mm
M16x40mm
62mm C-C
13mm diam.
52-74mm C-C
Includes nuts & links
Six Terminals: W2, U2, V2, U1, V1, W1


12 Stud Terminal
                Block Drawing

Terminal Blocks with 9 studs
Harmonization Schedule (HS) and Schedule B Number: 85369085
Part Price
Board Studs Mounting Notes
TB3M40x40.9
Terminal Block 9
$30.50
Plastic
40mm x 40mm
M3x10mm
15mm C-C
4.5mm diam.
15mm C-C
Includes nuts & links
TB4M44x44.9
Terminal Block 9
$31.50
Plastic
44mm x 44mm
M4x12mm
15mm C-C
4.5mm diam.
15mm C-C
Includes nuts & links
TB5M56x56.9
Terminal Block 9
$38.50
Plastic
56mm x 56mm
M5x15mm
20mm C-C
5.5mm diam.
20mm C-C
Includes nuts & links
TB6M70x70.9
Terminal Block 9
$51.50
Plastic
70mm x 70mm
M6x18mm
25mm C-C
7mm diam.
25mm C-C
Includes nuts & links
TB8M80x80.9
Terminal Block 9
$99.50
Plastic
80mm x 80mm
M8x23mm
30mm C-C
7.5mm diam.
30mm C-C
Includes nuts & links
TB10M108x108.9
Terminal Block 9
$217.50
Plastic
108mm x 108mm
M10x35mm
40mm C-C
11x14mm oblong
40mm C-C
Includes nuts & links


12 Stud Terminal
                Block Drawing

Terminal Blocks with 12 studs
Harmonization Schedule (HS) and Schedule B Number: 85369085
Part Price
Board Studs Mounting Notes
TB4M46x64.12
Terminal Block 12
$25.00
Plastic
46mm x 64mm
M4x10mm
18mm C-C
5mm x 8mm oval
18mm C-C
Includes nuts & links
TB6M65x91.12
Terminal Block 12
$60.00
Plastic
65mm x 91mm
M6x16mm
25mm C-C
6.5mm x 11mm oval
25mm C-C
Includes nuts & links

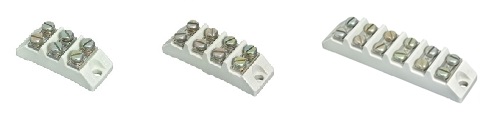

Ceramic Terminal Strip Picture

High Temperature Wiring Blocks
Harmonization Schedule (HS) and Schedule B Number: 85369085
Part Price
Board Screws Mounting Notes
TS-3x2ceramic
   3 pole
$62.50
Ceramic
28mm x 72mm
M4 62mm center to center 500VAC, 44Amp max
TS-4x2ceramic
   4 pole
$78.50
Ceramic
28mm x 90mm
M4 80mm center to center 500VAC, 44Amp max
TS-6x2ceramic
   6 pole
$99.50
Ceramic
28mm x 127mm
M4 116mm center to center 500VAC, 44Amp max

Terminal strips drawing

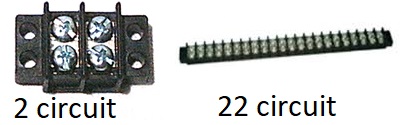

Terminal Strips
Harmonization Schedule (HS) and Schedule B Number: 85369085
Part Price
Notes
TS-2x2   2 circuit $7.95
Mounting: 0.312" x 1.125", 15A, 250V, #14 - #22 AWG Cu
TS-3x2   3 circuit $9.95
Mounting: 0.312" x 1.450", 15A, 250V, #14 - #22 AWG Cu
TS-4x2   4 circuit $9.95
Mounting: 0.312" x 1.875", 15A, 250V, #14 - #22 AWG Cu
TS-5x2   5 circuit $12.45
Mounting: 0.312" x 2.200", 15A, 250V, #14 - #22 AWG Cu
TS-6x2   6 circuit $14.95
Mounting: 0.312" x 2.625", 15A, 250V, #14 - #22 AWG Cu
TS-7x2   7 circuit $17.45
Mounting: 0.312" x 3.000", 15A, 250V, #14 - #22 AWG Cu
TS-8x2   8 circuit $17.50
Mounting: 0.312" x 3.375", 15A, 250V, #14 - #22 AWG Cu
TS-9x2   9 circuit $17.95
Mounting: 0.312" x 3.75", 15A, 250V, #14 - #22 AWG Cu
TS-10x2   10 circuit $18.25
Mounting: 0.312" x 4.125", 15A, 250V, #14 - #22 AWG Cu
TS-11x2   11 circuit $18.50
Mounting: 0.312" x 4.500", 15A, 250V, #14 - #22 AWG Cu
TS-12x2   12 circuit $19.25
Mounting: 0.421" x 5.625", 15A, 250V, #14 - #22 AWG Cu
TS-14x2   14 circuit $20.25
Mounting: 0.312" x 5.625", 15A, 250V, #14 - #22 AWG Cu
TS-15x2   15 circuit $21.50
Mounting: 0.437" x 9.000", 15A, 250V, #14 - #22 AWG Cu
TS-16x2   16 circuit $22.00
Mounting: 0.312" x 6.375", 15A, 250V, #14 - #22 AWG Cu
TS-18x2   18 circuit $23.50
Mounting: 0.312" x 7.125", 15A, 250V, #14 - #22 AWG Cu
TS-20x2   20 circuit $24.75
Mounting: 0.312" x 7.812", 15A, 250V, #14 - #22 AWG Cu
TS-22x2   22 circuit $26.50
Mounting: 0.312" x 8.500", 15A, 250V, #14 - #22 AWG Cu
TS-24x2   24 circuit $27.50
Mounting: 0.312" x 9.375", 15A, 250V, #14 - #22 AWG Cu


Aluminum wire marker drawing           Tape wire marker dospenser drawing
Part Series Price
Dimensions
AWM-*S
Aluminum Wire Marker
Small size
$17.75/
bag of 100
Select Imprint
Tab: 0.25" x 0.44"
Tongue length: 0.94"
For wire diameter: 0.12" to 0.31"
AWM-*L
Aluminum Wire Marker
Large size
$19.50/
bag of 100
Select Imprint
Tab: 0.44" x 0.62"
Tongue length: 2.62"
For wire diameter: 0.12" to 0.87"
TWM0123456789
Tape Wire Markers
Ten spools
$72.50
Ten spools numbered: 0-9


Terminal Box Drawing

Terminal Boxes
Part Price
A x D(B) x C Material E, Conduit F - G Frame, Volume
KTB1 Steel $28.90
3.88" x 3.12"(4.50") x 2.75" Steel 1.65", 1" NPT 1.79" - 2.65" 182-256U, 28 in3
KTB1-Pl Plastic $36.50
3.88" x 3.12"(4.00") x 2.75" Plastic 1.12" 1.50" - 2.50" 182-256U, 28 in3
KTB2 Steel $37.80
4.88" x 3.95"(5.54") x 3.62" Steel 2.36", 1.25" NPT 2.64" - 3.50" 284-286U, 52 in3
KTB5-Pl Plastic $48.50
6.75" x 4.75"(6.00") x 4.12" Plastic 1.75", 1" NPT 2.31" - 3.38" 184-286T, 81 in3
KTB5-Al Aluminum $132.50
6.00" x 5.12"(6.88") x 4.00" Aluminum 1.75", 1" NPT 2.25" - 3.38" 184-286T, 81 in3
KTB5-Fe Cast Iron $285.00
6.00" x 5.12"(6.88") x 4.00" Cast Iron 1.75", 1" NPT 2.25" - 3.38" 184-286T, 81 in3
KTB3 Steel $75.00
7.88" x 5.12"(7.00") x 5.06" Steel 2.50", 2.5" NPT 2.91" - 4.04" 324-405U, 190 in3
KTB6-Al Aluminum $262.50
9.75" x 6.25"(8.25") x 5.62" Aluminum 2.25", 2" NPT 2.75" - 5.00" 286-365T, 242 in3
KTB6-Fe Cast Iron $417.00
9.75" x 6.25"(8.25") x 5.62" Cast Iron 2.25", 2" NPT 2.75" - 5.00" 286-365T, 242 in3
KTB4 Steel $115.00
12.00" x 6.10"(7.62") x 7.12" Steel 2.50", 3.5" NPT none 444-445U, 490 in3
KTB7-Al Aluminum $380.00
12.25" x 9.00"(11.25") x 7.75" Aluminum 2.75", 2.5" NPT 3.25" - 8.00" 365-445T, 657 in3
KTB7-Fe Cast Iron $543.00
12.25" x 9.00"(11.25") x 7.75" Cast Iron 2.75", 2.5" NPT 3.25" - 8.00" 365-445T, 657 in3
KTB8-Al Aluminum $620.00
14.75" x 10.62"(13.25") x 8.50" Aluminum 3.50", 3" NPT 4.00" - 10.00" 445T-up, 995 in3
KTB8-Fe Cast Iron $762.00
14.75" x 10.62"(13.25") x 8.50" Cast Iron 3.50", 3" NPT 4.00" - 10.00" 445T-up, 995 in3


Hard Start Drawing

Part Price
Application Voltage Max voltage Notes
HardStart100 $32.50
1/2 to 5hp Permanent Split Capacitor Motors
as seen in air conditioning and heating
115-230VAC 277V 2 wires
HardStart200 $51.50
1/2 to 10hp Permanent Split Capacitor Motors
as seen in air conditioning and heating
115-230VAC 277V 2 wires
