GE & GE Amplidyne Replacements Brushes
back to brushes main page

Figure 90S
                Drawing Figure 90V
                Drawing     Figure 90V6
                Drawing     Figure 90VE
                Drawing
Part Price
Thickness Width Length Material Lead Terminal Notes
36A164456-21
   36A164456AAP21
   GE model # 5CD192...
   GE model # 5CD193...
   GE model # 5CD194...
$44.30
0.625" 1.250" 2.125" Black E 4.000" tinned U-0.218" bent Figure 90VE, 20/25 bevels
padded hammer plate
36A164456AAP21
   GE original
$44.30
0.625" 1.250" 2.125" Black E
T563
4.000" tinned U-0.218" bent Figure 90VE, 20/25 bevels
metal hammer plate
36A164456H55
   for Paper Mills
   36A164456AAX03
   36A164456AAX05
$39.91
0.625" 1.250" 2.125" Gray E 4.000" tinned U-0.218" bent Figure 90VE, 20/25 bevels, pad
36A164456X20 $33.27
0.625" 1.250" 2.125" Black E 4.000" tinned U-0.218" bent Figure 90V, 20/25 bevels, pad
36A164456clip
  36A164456AAP21
$34.65
0.625" 1.250" 2.125" Black E 4.000" tinned U-0.218" bent Figure 90VE, 20/25 bevels,
metal clip
36A164457-1
  36A164457AAP1
$37.03
0.750" 1.250" 2.500" Black E 4.250" tinned U-0.218" bent Figure 90V, 25/10 bevels, wear band
894A505P1
   GE model # 5CD505...
$38.24
0.750" 1.500" 2.375" Black E 3.500" tinned U-0.281" bent Figure 90V, 30/20 bevels
894A505PAD $38.24
0.750" 1.500" 2.500" Black E 3.500" tinned U-0.218" bent Figure 90V, 30/20 bevels
36A161401-3
  36A161401AAP3
$43.58
0.750" 1.500" 2.750" Black E 4.000" tinned U-0.281" bent Figure 90V, 30/20 bevels
36A161401T57 $44.30
0.750" 1.500" 2.750" Black E 4.000" tinned U-0.281" bent Figure 90V, 30/20 bevels, wear band
36A161401clip $50.68
0.750" 1.500" 2.750" Black E 4.000" tinned U-0.281" bent Figure 90V, 30/20 bevels
36A164451
  36A164451AAP21
$62.08
0.750" 1.500" 3.250" Black E
T566
5.000" tinned U-0.281" bent Figure 90V, 20/25 bevels, wear band
36A164451-18
   36A164451ABP18
   36A164451AB018
   GE model # 5CD203...
   GE model # 5CD204...
$55.71
0.750" 1.500" 3.250" Black E 4.500" tinned U-0.281" bent Figure 90V, 20/25 bevels, wear band
36A164451-20
  36A164451AAP20
$44.30
0.750" 1.500" 3.250" Black E 4.500" tinned U-0.281" bent Figure 90V, 20/25 bevels, wear band
36A164451H55
  for Paper Mills
$53.41
0.750" 1.500" 3.250" Gray E 4.500" tinned U-0.281" bent Figure 90V, 20/25 bevels, wear band
36A164451-21 $61.26
0.750" 1.500" 3.250" Black E
T563
5.750" tinned U-0.281" bent Figure 90V, 20/25 bevels, wear band
36A164451clip $48.07
0.750" 1.500" 3.250" Black E 5.250" tinned U-0.281" bent Figure 90V, 30/25 bevels, wear band
36A161402-6677
  36A161402AAP3
$47.55
0.875" 1.500" 2.750" Black E 4.000" tinned U-0.281" bent Figure 90V, 30/20 bevels
36A161402AAP06 $44.80
0.875" 1.500" 2.750" Black E
T566
4.000" tinned U-0.281" bent Figure 90V, 30/20 bevels
36A164452-5
  36A164452AAP05
$44.17
0.875" 1.500" 3.250" Black E 4.500" tinned U-0.281" bent Figure 90V, 25/10 bevels, wear band
36A164452-21
   36A164452AAP20
   36A164452AA021
   GE model # 5CD222...
   GE model # 5CD223...
   GE model # 5CD224...
   GE model # 5CD226...
$60.06
0.875" 1.500" 3.250" Black E 4.500" tinned U-0.281" bent Figure 90V, 25/10 bevels, wear band
36A164452AAP22
   for Paper Mills
$47.13
0.875" 1.500" 3.250" Gray E 5.000" tinned U-0.281" bent Figure 90V, 20/25 bevels, wear band
36A164452BAP05 $75.76
0.875" 1.500" 3.250" Black E
T566
5.000" tinned U-0.281" bent Figure 90V, 30/10 bevels
36A164452H77
   for plastic extrusion
$63.35
0.875" 1.500" 3.250" Black E 6.500" U-0.281" bent Figure 90V, 27.5/25 bevels
36A161403-3
  36A161403P3
$47.55
1.000" 1.500" 2.750" Black E 4.000" tinned U-0.281" bent Figure 90V, 30/20 bevels, wear band
36A161403-6
  36A161403AAP06
$47.55
1.000" 1.500" 2.750" Black E 4.000" tinned U-0.281" bent Figure 90V, 30/20 bevels, wear band
36A161403AAP06
  GE original
$52.31
1.000" 1.500" 2.750" Black E 4.000" tinned U-0.281" bent Figure 90S, 30/20 bevels, wear band
36A164453-1
  36A164453AAP21
$69.44
1.000" 1.500" 3.250" Black E 4.500" tinned U-0.281" bent Figure 90V, 25/10 bevels
36A164453-5
  36A164453AAP05
$46.02
1.000" 1.500" 3.250" Black E 4.500" tinned U-0.281" bent Figure 90V, 25/10 bevels
36A164453H55
  for Paper Mills
$63.07
1.000" 1.500" 3.250" Gray E 4.500" tinned U-0.281" bent Figure 90V, 25/10 bevels
36A173734ACP2 $86.70
1.250" 1.500" 3.250" Black E 5.250" tinned U-0.281" bent Figure 90V, 35/15 bevels
36A173734ABP001 $67.57
1.250" 1.500" 3.250" Black E 6.500" tinned U-0.281" bent Figure 90V6, 30/30 bevels

GE & GE Amplidyne Replacements Brushes
back to brushes main page
Figure 71K
                Drawing      Figure 71KG
                Drawing      Figure 91
                Drawing      Figure 91RT
                Drawing      Figure 91S Drawing
Part Price
Thickness Width Length Material Lead Terminal Notes
625A589AC1
   GE model # 5BPA56...
   GE model # 5BPB56...
$6.85
0.375" 0.625" 1.125" Gray E 2.000" C-0.218" Figure 231, 15/0 bevels
625A589ACP1 $11.90
0.375" 0.625" 1.125" Graphite G 2.000" C-0.218" Figure 231, 15/0 bevels
625A589AJ1 $9.91
0.375" 0.625" 1.125" Gray E 2.000" C-0.218" Figure 91
625A589probe $19.50
0.375" 0.625" 1.125" Gray E
A121
Main: 1.812"
Probe: 4.75" insulated
Main: C-0.218"
Probe: QF-0.250"
Figure 91
893A643ABP01 $27.50
0.625" 0.500" 1.750" Graphite G
R885, D1
2.125" tinned O-0.218" bent Figure 226, 40/25 bevels
893A643AAP1
   GE model # 5CD123...
   893A643AAP01
   893A643AAP02
   893A643ABP01
$37.23
0.625" 0.500" 1.937" Graphite G 2.125" tinned O-0.218" bent Figure 528, 40/25 bevels
41B537963P01 $38.16
0.750" 2.250" 2.000" Black E
T900
  O- Figure 71K, Locomotive
493X317P06 $49.77
0.750" 2.250" 2.295" Black E
T900
4.000" tinned O-0.355" Figure 71KG, Locomotive
41B535453P5
   GE model # 5GE776...
$42.82
0.750" 2.250" 2.295" Black E 4.500" O-0.281" Figure 71KG, Locomotive
36A167401-8
   36A167101AAP1
   36A167401AAP08
   GE model # 5CD152...
   GE model # 5CD153...
   GE model # 5CD154...
   GE model # 5CD163...
   GE model # 5CD164...
   GE model # 5BY454...
$29.74
0.875" 0.625" 1.500" Black E 2.625" tinned U-0.218" bent Figure 91S, 15/5 bevels
36A167401AAP02 $46.50
0.875" 0.625" 1.500" Black E
T566
2.375" tinned U-0.218" bent Figure 91S, 15/5 bevels, wear band
36A167401AAP07 $45.90
0.875" 0.625" 1.500" Graphite G
R312
2.375" tinned U-0.218" bent Figure 91S, 15/5 bevels, wear band
36A167401E77 $28.17
0.875" 0.625" 1.500" Black E 2.375" tinned U-0.218" bent Figure 91S, 15/5 bevels, wear band
36A167401PAR $26.04
0.875" 0.625" 1.500" Black E 2.625" tinned U-0.218" bent Figure 91S, 15/-5 bevel, wear band
36A167401E55
   for Paper Mills
$27.74
0.875" 0.625" 1.500" Gray E 2.375" tinned U-0.218" bent Figure 91RT, 15/5 bevel, wear band
36A167402AAP02 $30.09
1.250" 0.750" 2.000" Black E
T566
2.812" tinned U-0.218" bent Figure 91S, 15/5 bevels
36A167402-1
  36A167402AAP01
$38.83
1.250" 0.750" 2.000" Black E 3.250" U-0.218" bent Figure 91S, 15/5 bevels
36A167402-3
   36A167402AAP3
   36A167402AAP04
   GE model #5CD173...
   GE model #5CD174...
   GE model #5CD183...
   GE model #5CD184...
$30.96
1.250" 0.750" 2.000" Black E 3.250" tinned U-0.218" bent Figure 91S, 15/5 bevels
36A167402AAP08 $33.51
1.250" 0.750" 2.000" Graphite G
R312
3.250" tinned U-0.218" bent Figure 91S, 15/5 bevels
36A167402RT $47.84
1.250" 0.750" 2.000" Black E 3.250" tinned U-0.218" bent Figure 91RT, 15/5 bevels
36A167402E55
   for Paper Mills
$32.17
1.250" 0.750" 2.000" Gray E 3.625" tinned U-0.218" bent Figure 91S, 15/7.5 bevels
36A171014-11
   36A171014AAP11
   GE model # 5CD362...
   GE model # 5CD363...
   GE model # 5CD372...
   GE model # 5CD373...
$54.14
1.250" 1.000" 2.625" Black E 4.000" U-0.218" Figure 529

GE & GE Amplidyne Replacements Brushes
back to brushes main page
Part Price
Thickness Width Length Material Lead Terminal Notes
894A500P1
   GE model # 5CD218...
$10.50
0.375" 0.750" 1.250" Black E 2.500" U-0.187" bent Figure 9, 30/20 bevels
894A506P1
   GE model # 5CD14...
$10.94
0.375" 1.000" 1.187" Black E 2.250" U-0.187" bent Figure 9, 30/20 bevels
894A501P1 $11.25
0.375" 1.000" 2.000" Black E 3.000" U-0.187" bent Figure 9, 30/20 bevels
894A502P1 $16.45
0.375" 1.250" 2.000" Black E 3.500" U-0.187" bent Figure 9, 30/20 bevels
894A503P1 $20.00
0.500" 1.250" 2.000" Black E 3.250" tinned U-0.218" bent Figure 9, 30/20 bevels, wear band
894A504P21
   GE model # 5CD444...
$32.70
0.625" 1.250" 2.125" Black E 3.000" U-0.218" bent Figure 9, 30/20 bevels
894A504P26 $32.70
0.625" 1.250" 2.125" Black E 3.000" U-0.218" bent Figure 9, 30/20 bevels
894A504P1 $16.46
0.625" 1.250" 2.125" Black E 4.000" tinned U-0.218" bent Figure 9, 30/20 bevels, wear band
894A504H45 $19.21
0.625" 1.250" 2.250" Black E 3.187" U-0.218" bent Figure 9, 30/20 bevels, wear band

GE & GE Amplidyne Replacements Brushes
back to brushes main page

Figure 2U
                Drawing
Part Price
Thickness Width Length Material Lead Terminal Notes
1491535 $16.74
0.500" 1.000" 1.875" Gray E, D 4.000" insulated U-0.281" Figure 44WP, for slip ring
2444784 $29.27
0.500" 1.000" 1.875" Copper M, L4 5.500" insulated U-0.281" Figure 44A, for slip ring
5829407 $17.18
0.500" 1.000" 1.875" Gray E 4.250" insulated U-0.281" Figure 40A, for slip ring
2444730 $20.91
0.625" 1.250" 2.250" Gray E, D 5.750" insulated U-0.281" Figure 40A, for slip ring
2444731 $20.68
0.625" 1.500" 2.250" Gray E, D 5.750" insulated U-0.281" Figure 40A, for slip ring
2437672 $42.06
0.625" 1.500" 2.250" Copper M, L4 5.500" insulated U-0.281" Figure 44A, for slip ring
2444711 $22.04
0.750" 1.250" 2.250" Gray E, D 4.000" insulated U-0.281" Figure 40H, for slip ring
323B7989P0002
   323B7989P02
   61044264
$47.76
0.750" 1.250" 2.750" Gray E, 634 5.750" GEC-0.155" Figure 2U, for Power Generation
659A182P08 $37.10
0.750" 1.250" 2.750" Gray E, 634 5.500" tinned GEC-0.155" Figure 2U, for Power Generation
Rivet lead connection
659A182P1 $37.00
0.750" 1.250" 2.750" Gray E 6.000" C-0.170" Figure 2U
9651659
   242A413P07
   242A415P
   659A376
   858A493P002
$30.98
0.750" 1.250" 2.750" Gray E 6.000" GEC-0.125" Figure 40H, for slip rings
5026941
   502B941
$38.56
1.000" 1.250" 2.500" Black E 5.000" U-0.281" Figure 40A, bottom bevel
for commutators
368B4055P001 $49.50
1.000" 1.500" 4.000" Gray E
643
6.750" O-0.281" Figure 4P

GE & GE Amplidyne Replacements Brushes
back to brushes main page
Part Price
Thickness Width Length Material Lead Terminal Notes
1334501 $12.59
0.250" 1.250" 1.250" Black E 2.000" U-0.218" bent Figure 432, 30/15 bevels
1334501R310
   for Paper Miles
$16.77
0.250" 1.250" 1.375" Gray E 2.000" tinned U-0.218" bent Figure 432, 30/15 bevels
1330414 $35.35
0.375" 0.750" 1.875" Black E 3.000" U-0.218" bent Figure 432, 30/15 bevels
36A167400-1
   36A167400AAP01
   GE model # 5CD142...
   GE model # 5CD143...
   GE model # 5CD144...
   GE model # 5CD145...
$12.72
0.375" 1.000" 1.125" Black E 2.250" U-0.187" Figure 33, 30/20 bevels
1330413 $13.98
0.375" 1.250" 1.875" Black E 3.000" U-0.218" Figure 432, 30/15 bevels
1330413H28 $15.64
0.375" 1.250" 2.000" Black E 3.250" U-0.218" Figure 432, 30/15 bevels
124A3528ABP01 $69.45
0.375" 1.250" 2.250" Black E
L356
3.125" U-0.220" Figure 124A3528ABP01, 40/20 bevels
8704703X01 $31.67
0.375" 1.250" 2.250" Black E
T563
4.250" tinned U-0.282" Figure 435DS, 30/20 bevels
8790303P $18.19
0.375" 1.500" 2.250" Black E 4.250" U-0.281" Figure 21, 30/0 bevels
8790303P24 $21.00
0.375" 1.500" 2.250" Black E 4.250" tinned U-0.281" Figure 21, 30/20 bevels
8790303P35 $18.19
0.375" 1.500" 2.250" Black E 4.250" U-0.281" Figure 21, 30/15 bevels
1330412 $15.49
0.500" 1.000" 1.875" Black E 3.000" U-0.218" bent Figure 432, 30/15 bevels
625A675AA4 $42.45
0.500" 1.250" 1.750" Black E 3.250" insulated,
tinned
U-0.218" Figure 96H, Terminal: U-0.217",
57042425
625A675MG $23.50
0.500" 1.250" 1.750" Copper M
H803
3.250" insulated U-0.218" Figure 96H, Terminal: U-0.217",
Crown, 305-04-06-004, 103842
1334276P01 $27.52
0.500" 1.250" 1.875" Black E 3.000" U-0.218" bent Figure 432, 30/15 bevels
8790304P $18.57
0.500" 1.500" 2.250" Black E 4.250" U-0.281" Figure 21, 30/15 bevels
61008439 $37.25
0.625" 1.500" 2.250" Black E
SA45
4.250" U-0.265" Figure 21, 30/20 bevels
1330614 $32.00
0.875" 1.250" 1.875" Black E 3.000" O-0.195" Figure 432, 30/15 bevels

GE & GE Amplidyne Replacements Brushes
back to brushes main page
Figure 4PRT Drawing    Figure 7PR Drawing    Figure 96PRT Drawing    Figure 112PRT Drawing
Part Price
Thickness Width Length Material Lead Terminal Notes
GCB101PR
   GE model # 5BC48...
$31.50
0.500" 0.625" 1.500" Black E 3.000" & 9.500"
insulated
Bolt:
⌀0.306" x 1.625" long
Figure 112PRT
0/25 bevels
L500-118GE
   36A291744ADP01
   GE model # 5BT1344...
$34.85
0.500" 1.125" 1.438" Gray E Main: 2.250" insulated
Probe: 2.25" + 4.75"
Main: U-0.219"
Probe: QFF-0.281"
Figure 7PR, 30/15 bevels
324B8400AEP03 $38.50
0.500" 1.125" 1.500" Black E 2.000" U-0.187" Figure 4PRT, 0/15 bevels
955A470P15 $53.84
0.500" 1.250" 1.500" Black E
T300
2.125" O-0.213" bent Figure 7PR, 30/15 bevels
Rivet lead connection
324B8400ADP03 $38.46
0.625" 1.125" 1.500" Black E 2.750" U-0.218" Figure 4PRT, 0/15 bevels
197C6775P03 $51.79
16mm 32mm 51mm Black E 150mm insualted U-7mm Figure 96PRT
36A166034AAP20 $72.50
0.750" 0.750" 2.500" Black E
T500 P20
4.500" tinned U-0.218" bent Figure 7PR, 30/30 bevels
Rivet lead connection

GE & GE Amplidyne Replacements Brushes
back to brushes main page
Figure 201 Drawing Figure Eared Cap Drawing
Part Price
Thickness Width Length Material Lead Diameters Notes
S125-316R $35.26
0.125" 0.187" 0.440" Silver M 0.450" Cap: 0.305"
Spring: 0.125"
Figure 201
S125-14AG $22.50
0.125" 0.250" 0.625" Silver M 0.875" Cap: 0.307"
Spring: 0.160"
Figure EARED CAP
S125-14A
  625A637AA1
$7.40
0.125" 0.250" 0.625" Black E 1.125" Cap: 0.315"
Spring: 0.157"
Figure EARED CAP
8104267AB6 $6.41
0.125" 0.500" 0.875" Graphite G 2.375" Cap: 0.687"
Spring: 0.380"
Figure 202, spr:0.343"  cap:0.375"
5895806AA1
   5895472AA1
$5.05
0.125" 0.562" 0.875" Graphite G 3.250" Cap: 0.718"
Spring: 0.437"
Figure 202
625A625AB1 $10.00
0.125" 0.688" 0.875" Graphite G 3.250" Cap: 0.688"
Spring: 0.531"
Figure 202
36B467072-3
  36B467072AAP3
$29.43
0.187" 0.187" 0.375" Silver M 0.750" Cap: 0.307"
Spring: 0.161"
Figure 201
159A803P06 $13.80
0.187" 0.187" 1.187" Copper M,
L4
2.375" Cap: 0.260"
Spring: 0.180"
Figure 201
5895872AA1 $5.30
0.218" 0.562" 0.875" Graphite G 3.250" Cap: 0.547"
Spring: 0.413"
Figure 202, spr:0.406"  cap:0.687"

GE & GE Amplidyne Replacements Brushes
back to brushes main page
Part Price
Thickness Width Length Material Lead Diameters Notes
625A619HA1 $6.51
0.250" 0.375" 0.750" Graphite G 2.250" Cap: 0.461"
Spring: 0.330"
Figure 202, spr:0.312"  cap:0.406"
8763278ACP01
   GE model # 5BC46...
$15.55
0.250" 0.375" 1.000" Black E 1.875" Cap: 0.460"
Spring: 0.306"

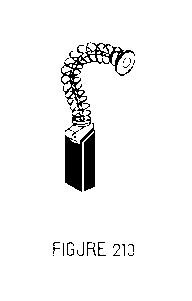

Figure 210, cap:0.437"
625A619AM1 $6.96
0.250" 0.375" 1.000" Black E 2.000" Cap: 0.460"
Spring: 0.337"
Figure 202
625A682HA1 $10.82
0.250" 0.500" 0.750" Black E 0.875" Cap: 0.592"
Spring: 0.375"
Eyelet
S250-12A $8.14
0.250" 0.500" 0.813" Black E 1.375" Cap: 0.592"
Spring: 0.313"
Eared
625A682CA1 $27.54
0.250" 0.500 0.875" Graphite G
F83, G2
2.125" Cap: 0.688"
Spring: 0.365"
Figure 202
625A682AA3 $11.61
0.250" 0.500 0.875" Copper M 2.250" Cap: 0.540"
Spring: 0.420"
Figure 202
GEB1 $14.11
0.250" 1.000" 1.000" Black E 2.000" Cap: N/A
Spring: 0.757"
Figure 211
GEB2 $14.11
0.250" 1.000" 1.000" Graphite G 2.000" Cap: N/A
Spring: 0.757"
Figure 211
625A676HA1 $6.85
0.312" 0.375" 1.000" Graphite G 2.250" Cap: 0.459"
Spring: 0.321"
Figure 202
625A651HA1
   625A651CA1
$11.51
0.375" 0.625" 0.875" Graphite G
F83
2.250" Cap: 0.684"
Spring: 0.461"
Figure 202
E50897 $36.56
0.375" 0.625" 0.875" Graphite G
E7
2.312" Cap: 0.687"
Spring: 0.553"
Figure 202
625A651H21 $8.80
0.375" 0.625" 1.000" Black E 2.187" Cap: 0.695"
Spring: 0.474"
Figure 202
8100097AA1
   8100097AA2
$10.00
0.500" 0.500" 1.000" Graphite G 3.000" Cap: 0.532"
Spring: 0.475"
Figure 202
