Fan Covers

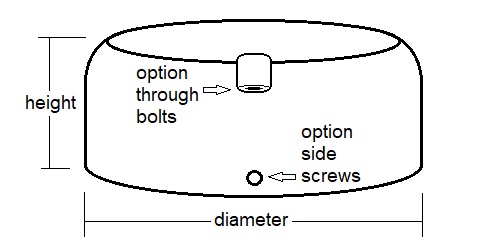

Fan Cover Drawing

Part Price
Diameter Height Other Information
FanCover108 $20.75
4.32" 2.06" Sheet metal. 56 frame.
Side screws: Four at 90o, 0.40" from bottom
FanCover63 $17.50
5.00" 2.50" Sheet metal. Weg. 63 frame.
Side screws: Three at 90o, 0.25" from bottom
0.95" x 0.62" opening at fourth position
FanCover136 $35.00
5.44" 2.80" Sheet metal. 71 frame.
Side screws: Four at 90o, 0.40" from bottom
FanCover71 $34.50
5.50" 2.81" Sheet metal. Weg. 71 frame.
Side screws: Three at 90o, 0.30" from bottom
0.95" x 0.87 opening at fourth position
FanCoverE80 $35.50
6.08" 2.85" Sheet metal. Weg. 80 frame.
Side screws: Three at 90o, 0.25" from bottom
0.95" x 0.87 opening at fourth position
FanCover154 $46.50
6.08" 3.00" Sheet metal. 80 frame.
Side screws: Four at 90o, 0.50" from bottom
FanCover48 $30.00
6.62" 2.00" Plastic. Weg. 48 frame.
Side screws: Three at 120o, 0.25" from bottom
3" flat at bottom
FanCoverW22 $42.50
6.750" 3.125" Sheet metal. Weg. 140 frame.
Side screws: Three at 90o, 0.312" from bottom
0.937 x 0.875" opening at fourth position
FanCoverE140 $47.50
6.81" 3.187" Sheet metal. Weg. 145TC frame.
Side screws: Three at 90o, 0.312" from bottom
0.937 x 0.875" opening at fourth position
FanCover174 $57.50
6.85" 3.42" Sheet metal. 90 frame.
Side screws: Four at 90o, 0.625" from bottom
MR9139762 $14.75
7.31" 2.00" Plastic. Marathon.
Through bolts: Three at 120o
3.88" flat at bottom.
FanCover56 $30.50
7.62" 2.50" Plastic. Weg. 56 frame.
Side screws: Three at 120o, 0.25" from bottom
3" flat at bottom
FanCoverE100 $50.50
7.65" 3.70" Sheet metal. Weg. 100 frame.
Side screws: Three at 90o, 0.290" from bottom
0.90 x 0.80" opening at fourth position
FanCover192 $62.50
7.65" 3.70" Sheet metal 100 frame.
Side screws: Four at 90o, 0.730" from bottom
FanCover216 $72.50
8.60" 3.90" Sheet metal. 112 frame.
Side screws: Four at 90o, 0.60" from bottom
FanCover180 $49.50
8.625" 3.500" Sheet metal. Weg. 180 frame.
Side screws: Three at 120o, 0.562" from bottom
FanCover255 $100.75
10.00" i.d.
10.12" o.d.
4.66" Sheet metal. 132 frame.
Side screws: Four at 90o, 0.87" from bottom
FanCoverE210 $80.50
11.00" 3.62" Sheet metal. Weg. 210, 213T frame.
Side screws: Three at 120o, 0.250" from bottom
4" flat at bottom
