Electrica and EMB(Embraco) Relays
H.S. Number: 8536.49.01

Warning

Due to the constantly changing relay market,
we provide exact matches when available,
or substitutes with the same rating when required.
Let us know if you cannot use a substitute.

GE Relays
3ARR2 here
3ARR3 here
3ARR4 here
3ARR12 here
3ARR20 here
3ARR30 here
3ARR31 here
3ARR32 here

Klixon Relays
  3CR
  4CR
  9660
  SL10

Fan & Switching Relays

Potter-Brumfield Relays


EMB 13510 Series Drawing
Part Number Price
Specifications
EMB1351037
   1351037
$31.95
Figure EMB13510
EMB213510312
   213510312   115V
   513503091   115V
Obsolete
Figure EMB13510

EMB21351
                Drawing
Part Number Price
Specifications
EMB213514008
   213514008   115V
$39.50
Figure EMB21351
EMB213514067
   213514067   115V
$46.50
Figure EMB21351
EMB213514083
   213514083   115V
Obsolete
Figure EMB21351
EMB213514105
   213514105   115V
$46.50
Figure EMB21351
EMB213514121
   213514121   115V
$33.50
Figure EMB21351
EMB213514180
   213514180   115V
$36.50
Figure EMB21351
EMB213515250
   213515250   115V
$39.50
Figure EMB21351



EMB 21351L series Drawing
Part Number Price
Specifications
EMB213516051
   213516051   115V
$36.95
Figure EMB21351L with One QM-0.250" at positions 10, 11 and 13
EMB213516060
   213516060   115V
$31.95
Figure EMB21351L with One QM-0.250" at positions 10, 11 and 13
EMB213516132
   213516132   115V
Obsolete
Figure EMB21351L with One QM-0.250" at position 10
EMB213516175
   213516175   115V
Obsolete
Figure EMB21351L with One QM-0.250" at positions 10, 11 and 13
EMB213516183
   213516183   115V
$39.50
Figure EMB21351L with One QM-0.250" at position 10
EMB213516264
   213516264   115V
$31.95
Figure EMB21351L with One QM-0.250" at position 10

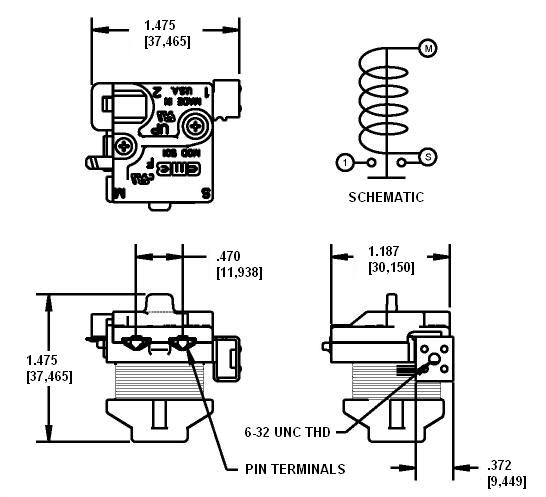

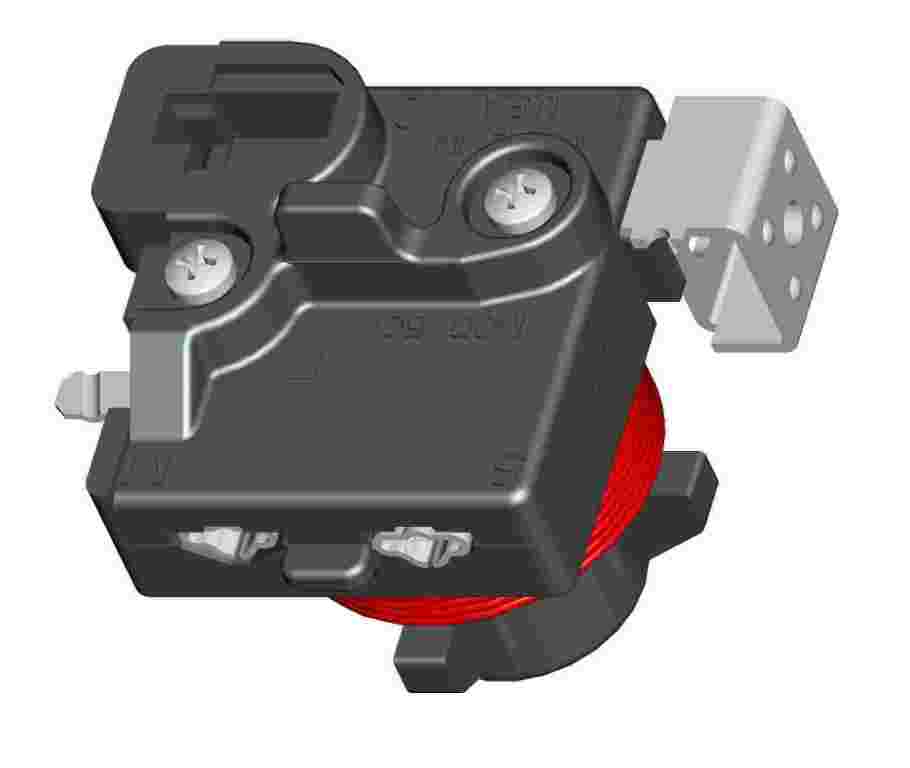

EMB5011Screw Drawing
EMB5011Screw
EMB5011Screw schematic
Part Number Price
Specifications
EMB92125
   MOD501 92125
   ~9660-040-125
$35.00
Figure EMB5011Screw
EMB92158
   MOD501 92158
   ~9660-040-158
$35.00
Figure EMB5011Screw
EMB92166
   MOD501 92166
   ~9660-040-166
$35.00
Figure EMB5011Screw
EMB92172
   MOD501 92172
   ~9660-040-172
$35.00
Figure EMB5011Screw
EMB92176
   MOD501 92176
   ~9660-040-176
$35.00
Figure EMB5011Screw
EMB92182
   MOD501 92182
   ~9660-040-182
$31.95
Figure EMB5011Screw

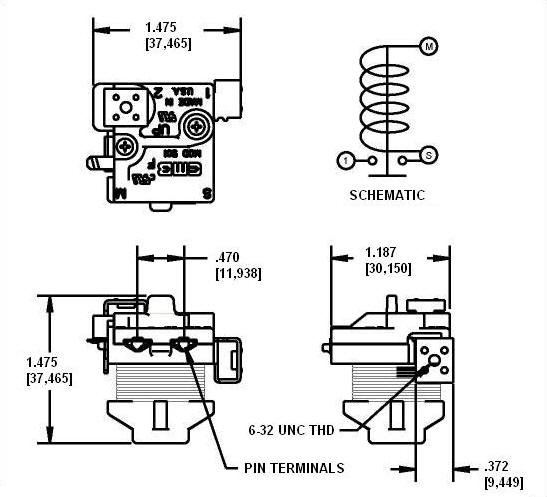

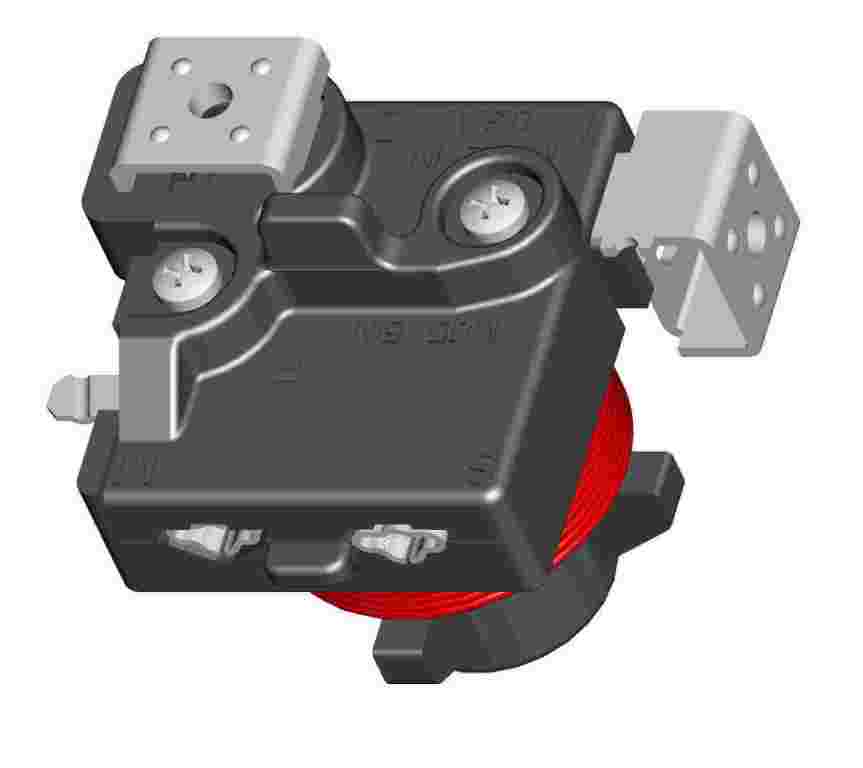

EMB5012Screw Drawing
EMB5012Screw
EMB5012Screw schematic
Part Number Price
Specifications
EMB82627
   Klixon 82627
$31.95
Figure EMB5012Screw
EMB82654
   Klixon 82654
$31.95
Figure EMB5012Screw
EMB82977
   E82977
$31.95
Figure EMB5012Screw
EMB94125
   94125
   ~9660-041-125
$35.00
Figure EMB5012Screw
EMB94135
   ~9660-041-135
$31.95
Figure EMB5012Screw
EMB94149
   94149 421
   94149 437 MOD 501
   94149 ***
   ~9660-041-149
$31.95
Figure EMB5012Screw
EMB94166
   94166 ***
   ~9660-041-166
$31.95
Figure EMB5012Screw
EMB94177
   94177 ***
   ~9660-041-177
$31.95
Figure EMB5012Screw
EMB94178
   94178H ***
   ~9660-041-179
$31.95
Figure EMB5012Screw
EMB94182
   94182 ***
   ~9660-041-182
$31.95
Figure EMB5012Screw
EMB94188H
   94188 ***
   ~9660-041-188
$31.95
Figure EMB5012Screw
EMB94191
   94191H
   ~9660-041-191
$45.00
Figure EMB5012Screw
EMB E82976
   E82976, MOD 501
$31.95
Figure EMB5012Screw
EMB E82979
   E82979, MOD 501
Obsolete
Figure EMB5012Screw

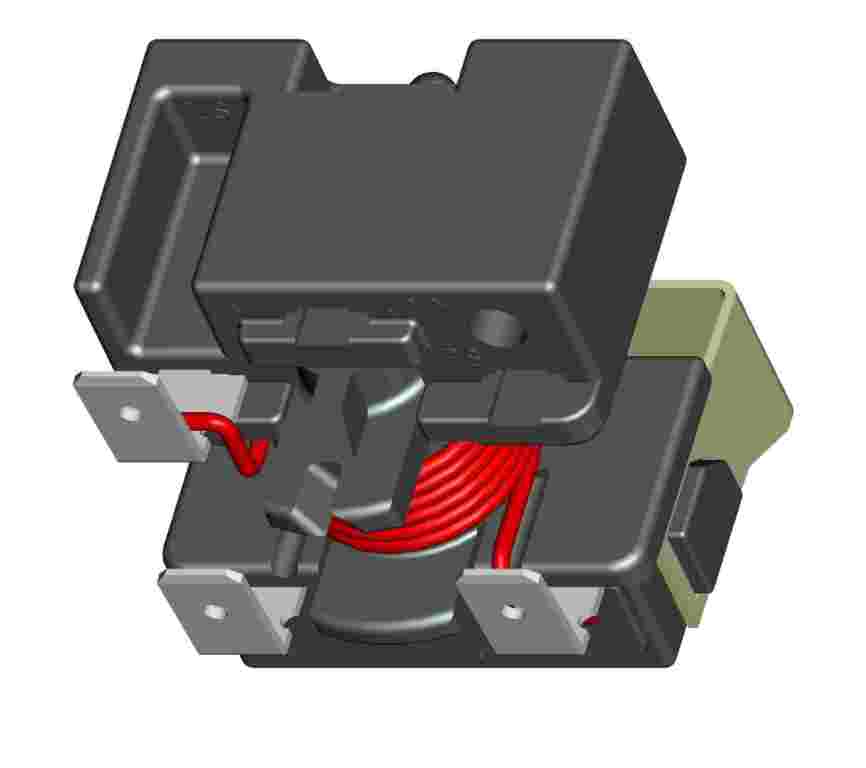

EMB1503Term Drawing
EMB1503Term
EMB1503Term schematic
Part Number Price
Specifications
EMB96161
   Sometimes a GE replacement
$35.00
Figure EMB1503Term


EMB1503Term Drawing

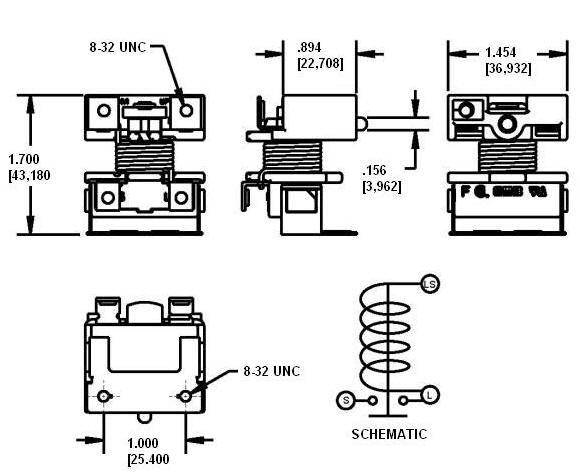

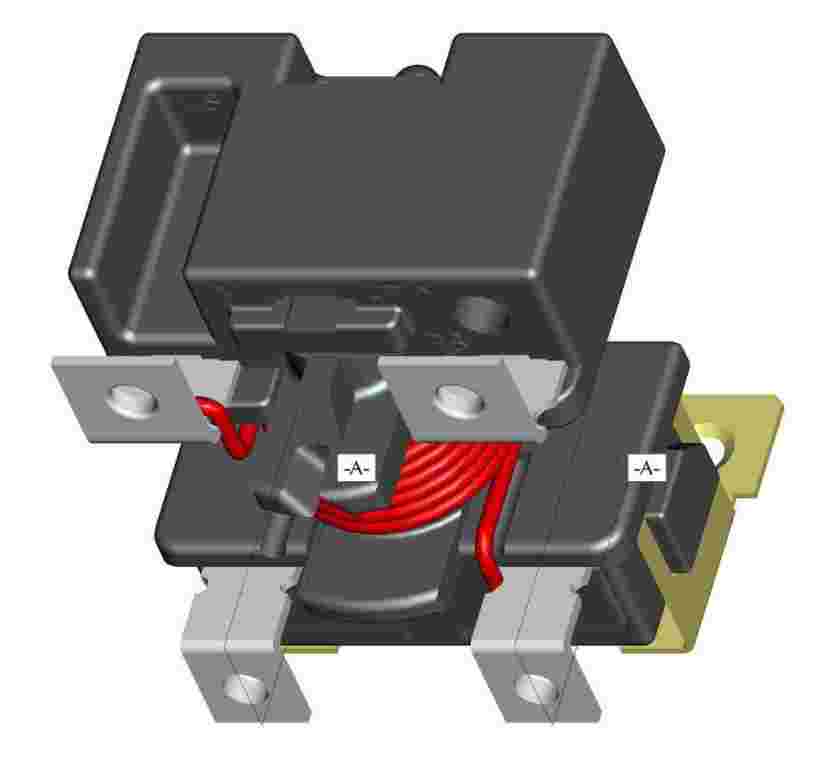

EMB1504Screw
EMB1504Screw schematic
Part Number Price
Specifications
EMB98289
   EMB94289 (old)
   040-0159-00 (old)
   150-94289 (old)
   150-98289 (new)
   940-0102-00 (new)
$82.50
Figure EMB1504Screw

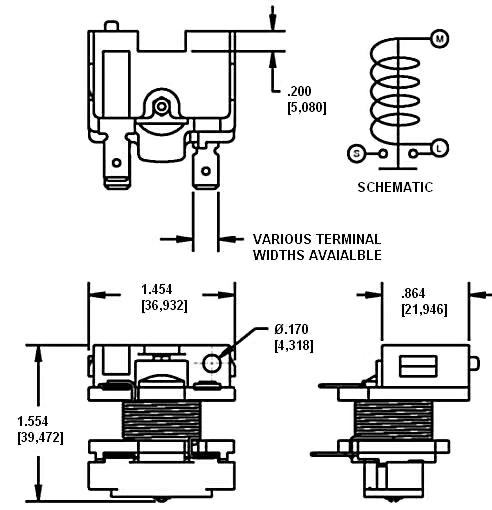

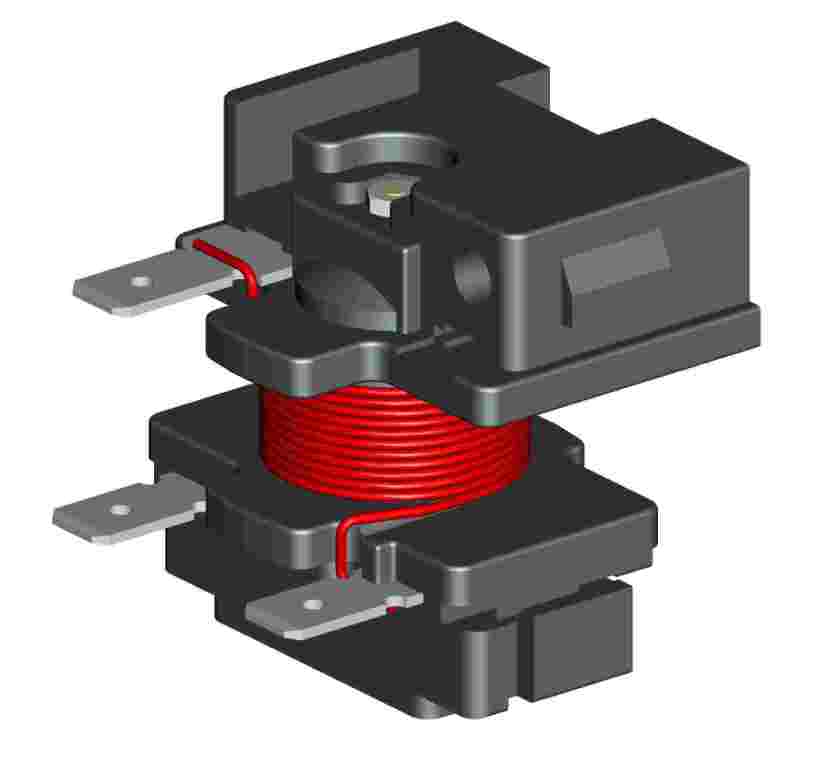

EMB1013Term Drawing
EMB1013Term
EMB1013Term schematic
Part Number Price
Specifications
EMB101 001 602
   101 001 602, 101001602
Obsolete
Figure EMB1013Term
EMB101 001 702
   101 001 702, 101001702
Obsolete
Figure EMB1013Term
EMB101 003 814
   101 003 814, 101003814
   011-6T
$49.75
Figure EMB1013Term, EMB MOD.101
Bosch/Ridgid EB44240, EB44241
EMB817157 9 87
   817157 9 87, 817157987
$36.50
Figure EMB1013Term
EMB902460
   6 902460 WH
$36.50
Figure EMB1013Term
EMB-WE-101
   WE-101, Ryobi
$36.50
Figure EMB1013Term

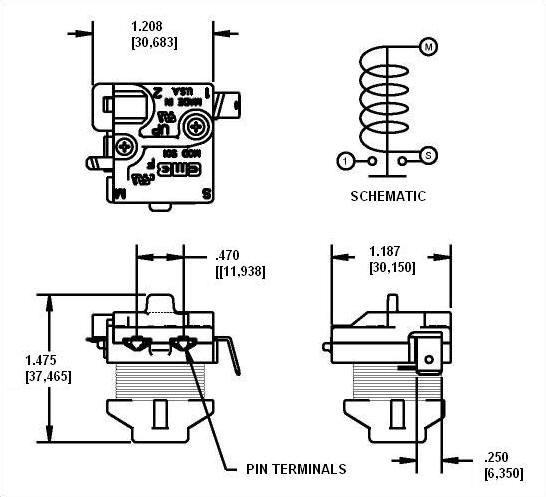

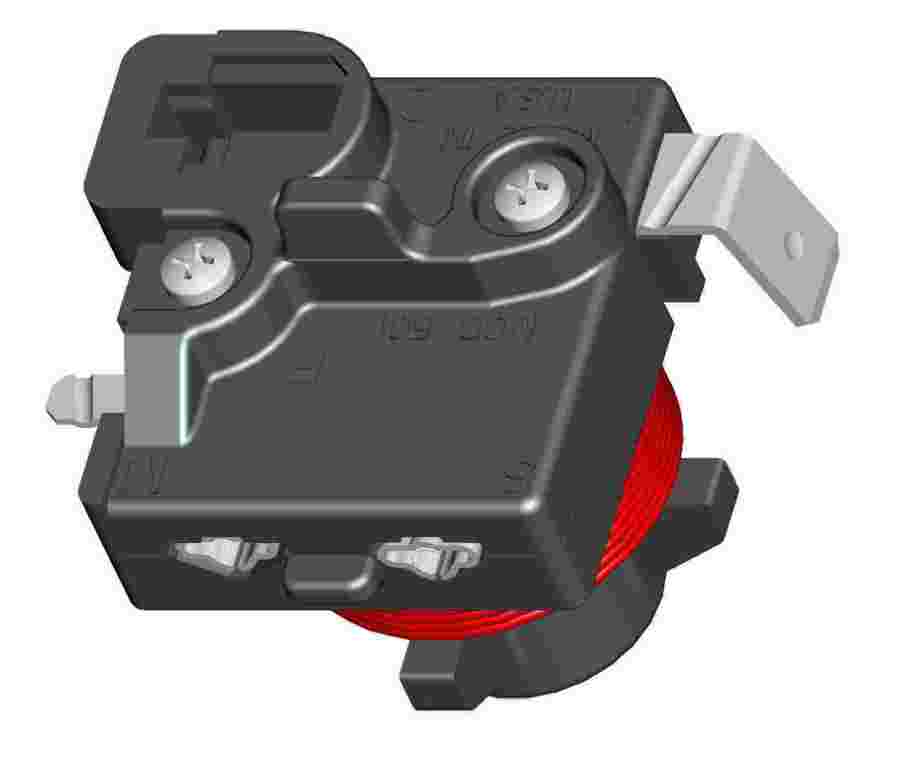

EMB5011Term Drawing
EMB5011Term
EMB5011Term schematic
Part Number Price
Specifications
EMB91111
   MOD501 91111
   ~9660-042-111
Obsolete
Figure EMB5011Term
EMB91112
   MOD501 91112
   ~9660-042-112
$31.95
Figure EMB5011Term
EMB91140
   MOD501 91140
   ~9660-042-140
$31.95
Figure EMB5011Term
EMB91149
   MOD501 91149
   ~9660-042-149
$31.95
Figure EMB5011Term
EMB91152
   MOD501 91152
   ~9660-042-152
$31.95
Figure EMB5011Term
EMB91161
   MOD501 91161
   ~9660-042-161
$31.95
Figure EMB5011Term
EMB91166
   MOD501 91166
   ~9660-042-166
$31.95
Figure EMB5011Term

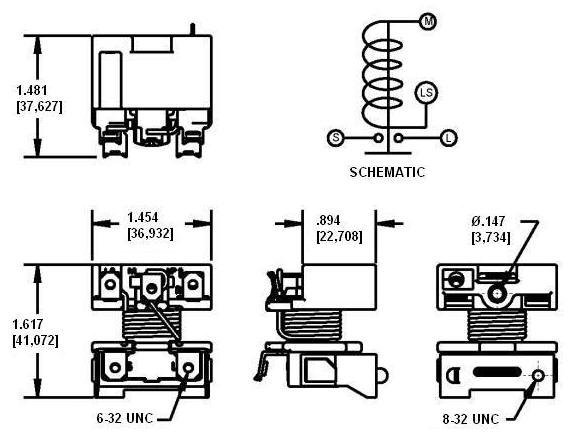

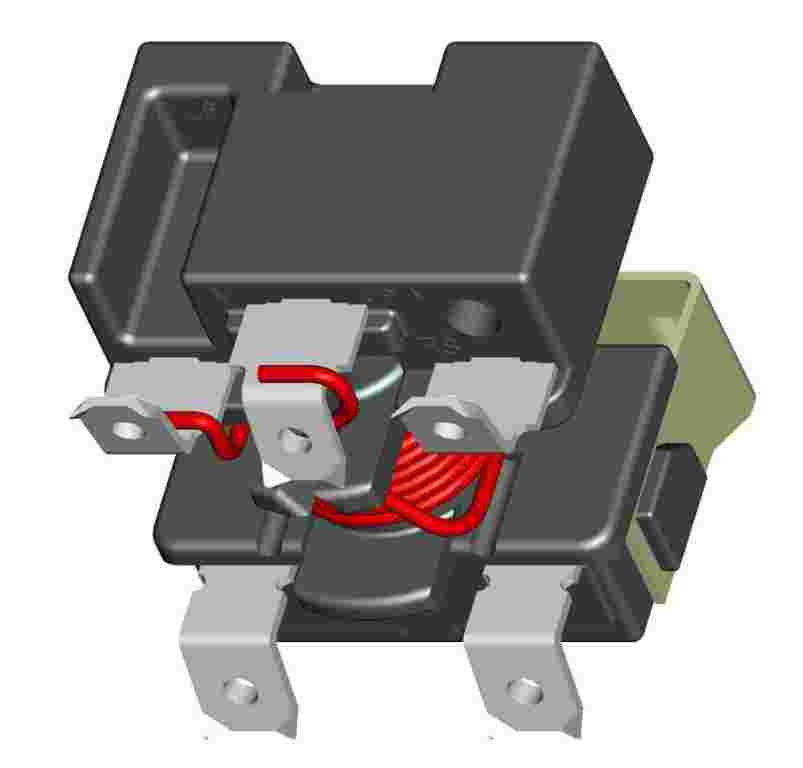

EMB1505Screw Drawing
EMB1505Screw
EMB1505Screw schematic
Part Number Price
Specifications
EMB150-90104
   150-90104
$62.50
Figure EMB1505Screw
EMB150-90113
   150-90113
$62.50
Figure EMB1505Screw
EMB150-90305
   150-90305
$31.95
Figure EMB1505Screw

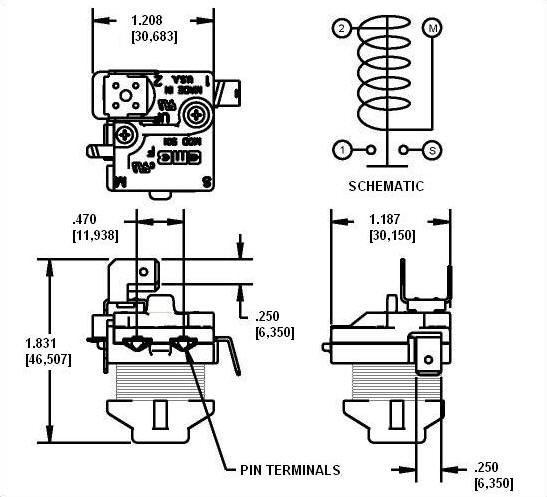

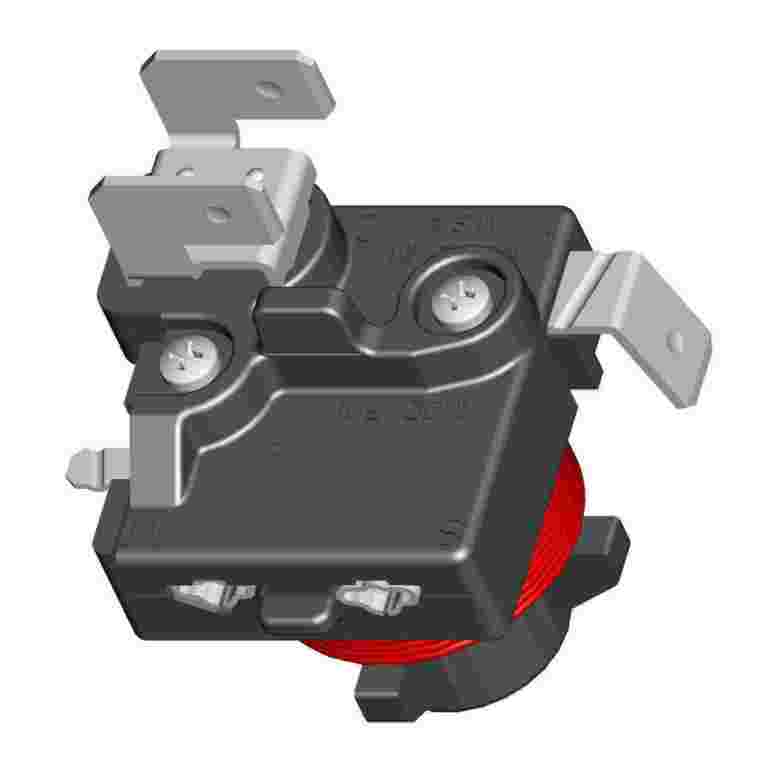

EMB5013Term Drawing
EMB5013Term
EMB5013Term schematic
Electrica MTRP**08 Drawing Electrica MTRP**31 Drawing Electrica MTRP**31T Drawing
Part Number Price
Specifications
EMB96175
   96175
$31.95
Figure EMB5013Term
Pick-up: 14.50A, Drop-out: 12.10A
9660C-3018-161 $31.95
Figure EMB5013Term
9660C-3018-166 $31.95
Figure EMB5013Term
Pick-up: 10.80A, Drop-out: 9.00A
9660C-3018-171 $31.95
Figure EMB5013Term
Pick-up: 12.90A, Drop-out: 10.80A
9660C-3018-172 $31.95
Figure EMB5013Term
Pick-up: 13.30A, Drop-out: 11.10A
9660C-3018-182 $31.95
Figure EMB5013Term
Pick-up: 18.40A, Drop-out: 15.40A
9660C-3018-183 $31.95
Figure EMB5013Term
Pick-up: 19.60A, Drop-out: 16.40A
9660C-3018-189 $31.95
Figure EMB5013Term
Pick-up: 24.75A, Drop-out: 20.45A
9660C-3018-191 $31.95
Figure EMB5013Term
Pick-up: 27.20A, Drop-out: 22.70A
MTRP (Electric) Relays: Series specification sheets
MTRP5531
  MTRP 5531, 040-0150-02
$31.95
Figure Electrica MTRP**31
Pick-up: 11.00A, Drop-out: 9.35A
MTRP5708
  MTRP 5708 206, 2283038
$49.50
Figure Electrica MTRP**08
Pick-up: 12.10A, Drop-out: 10.30A
MTRP5931
  MTRP 5931, 040-0150-18
$31.95
Figure Electrica MTRP**31
Pick-up: 13.35A, Drop-out: 11.35A
MTRPH0019
  MTRP H0019-31, 2271126
$49.50
Figure Electrica MTRP**31T
MTRPH6731
  MTRP H6731, 2271146
$36.95
Figure Electrica MTRP**31T




Part Number Price
Specifications
EMB96149 $70.00


CompelaRP16208 Relay Drawing


Part Number Price
Specifications
CompelaRP16208
  19 48 N, RP 16208
$49.50



Electric RVA Relays
Series specification sheets


EMB RVA Series Relay Tab Mount Drawing
EMB RVA Series Relay Panel Mount Drawing
    Electric RVA Series Tab Mount         Electric RVA Series Panel Mount
Part Number Price
Specifications
RVA2ABKL
  Tab mount. 6 terminals.
$46.50
Coil: 332VAC max, Pick-Up: 132-148V, Drop-Out: 40-90V
RVA2AB3L
  Tab mount. 6 terminals.
$57.50
Coil: 332VAC max, Pick-Up: 132-148V, Drop-Out: 40-90V
RVA2ACKL
  Tab mount. 6 terminals.
$46.50
Coil: 332VAC max, Pick-Up: 140-150V, Drop-Out: 40-90V
RVA2AF3D
  Tab mount. 10 terminals.
$26.50
Coil: 332VAC max, Pick-Up: 171-184V, Drop-Out: 40-90V
RVA2AG3D
  Tab mount. 10 terminals.
$42.50
Coil: 332VAC max, Pick-Up: 180-193V, Drop-Out: 40-90V
RVA2AG3L
  Tab mount. 6 terminals.
$26.50
Coil: 332VAC max, Pick-Up: 180-193V, Drop-Out: 40-90V
RVA2AG6L
  Tab mount. 6 terminals.
$35.00
Coil: 332VAC max, Pick-Up: 180-193V, Drop-Out: 40-90V
RVA2ALKL
  Tab and Panel mount. 10 terminals
  was Tab mount. 6 terminals.
$49.50
Coil: 332VAC max, Pick-Up: 224-252V, Drop-Out: 40-105V
RVA3AG3D
  Tab mount. 10 terminals.
$48.00
Coil: 375VAC max, Pick-Up: 180-195V, Drop-Out: 40-105V
RVA3AG6L
  Tab mount. 6 terminals.
$36.00
Coil: 375VAC max, Pick-Up: 180-195V, Drop-Out: 40-105V
RVA3AL6L
  Tab mount. 6 terminals.
$65.00
Coil: 375VAC max, Pick-Up: 224-252V, Drop-Out: 50-110V
RVA3AM6L
  Tab mount. 6 terminals.
$57.50
Coil: 375VAC max, Pick-Up: 239-270V, Drop-Out: 50-110V
RVA4AI3D
  Tab mount. 10 terminals.
$31.50
Coil: 420VAC max, Pick-Up: 204-233V, Drop-Out: 60-121V
RVA4AIKL
  Tab mount. 6 terminals.
$46.50
Coil: 420VAC max, Pick-Up: 204-233V, Drop-Out: 60-121V
RVA4AM3D
  Tab mount. 10 terminals.
$26.50
Coil: 420VAC max, Pick-Up: 242-272V, Drop-Out: 60-121V
RVA4AM6D
  Tab mount. 10 terminals.
$49.50
Coil: 420VAC max, Pick-Up: 242-272V, Drop-Out: 60-121V
RVA4AM6L
  Tab mount. 6 terminals.
$53.50
Coil: 420VAC max, Pick-Up: 242-272V, Drop-Out: 60-121V
RVA4AP3D
  Tab mount. 10 terminals.
$26.50
Coil: 420VAC max, Pick-Up: 300-328V, Drop-Out: 60-121V
RVA4AQ6L
  Tab mount. 6 terminals.
$52.50
Coil: 420VAC max, Pick-Up: 318-347V, Drop-Out: 60-121V
RVA6AMKL
  Tab mount. 6 terminals.
$41.50
Coil: 502VAC max, Pick-Up: 239-268V, Drop-Out: 60-135V
RVA4L3D
  Tab mount. 10 terminals.
$40.00
Coil: 378VAC max, Pick-Up: 223-259V, Drop-Out: 50-110V
RVA6AMKL
  Tab mount. 6 terminals.
$41.50
Coil: 502VAC max, Pick-Up: 239-268V, Drop-Out: 60-135V
RVA6AQ3D
  Tab mount. 10 terminals.
$26.50
Coil: 502VAC max, Pick-Up: 314-342V, Drop-Out: 60-135V
RVA7AA3D
  Tab mount. 10 terminals.
$53.50
Coil: 168VAC max, Pick-Up: 111-124V, Drop-Out: 20-45V
RVA7AC3D
  Tab mount. 10 terminals.
$37.50
Coil: 168VAC max, Pick-Up: 130-144V, Drop-Out: 20-45V
RVA7AD3D
  Tab mount. 10 terminals.
$41.50
Coil: 168VAC max, Pick-Up: 140-153V, Drop-Out: 20-45V
RVA7AEKD
  Tab mount. 10 terminals.
  8200RVAM21
$49.50
Coil: 168VAC max, Pick-Up: 149-163V, Drop-Out: 20-45V
RVA7AIKD
  Tab mount. 10 terminals.
  8200RVAM21
$49.50
Coil: 168VAC max
RVA8AS3L
  Tab mount. 6 terminals.
$52.50
Coil: 588VAC max, Pick-Up: 332-361V, Drop-Out: 75-180V
RVA9AD6D
  Tab mount. 10 terminals.
$32.50
Coil: 253VAC max, Pick-Up: 140-153V, Drop-Out: 35-77V
RVA9AG3L
  Tab mount. 6 terminals.
$26.50
Coil: 253VAC max, Pick-Up: 168-182V, Drop-Out: 35-77V
RVA9AD6L
  Tab mount. 6 terminals.
$38.75
Coil: 253VAC max, Pick-Up: 140-153V, Drop-Out: 35-77V
RVA9AG3L
  Tab mount. 6 terminals.
$26.50
Coil: 253VAC max, Pick-Up: 168-182V, Drop-Out: 35-77V
RVA9AO3D
  Tab mount. 10 terminals.
$32.50
Coil: 253VAC max
RVA9CKL
  Tab mount. 6 terminals.
$46.50
Coil: 253VAC max
RVA21AIKD
  Tab mount. 10 terminals.
  8200RVAM25
$78.50




EMB/Embraco Other Styles

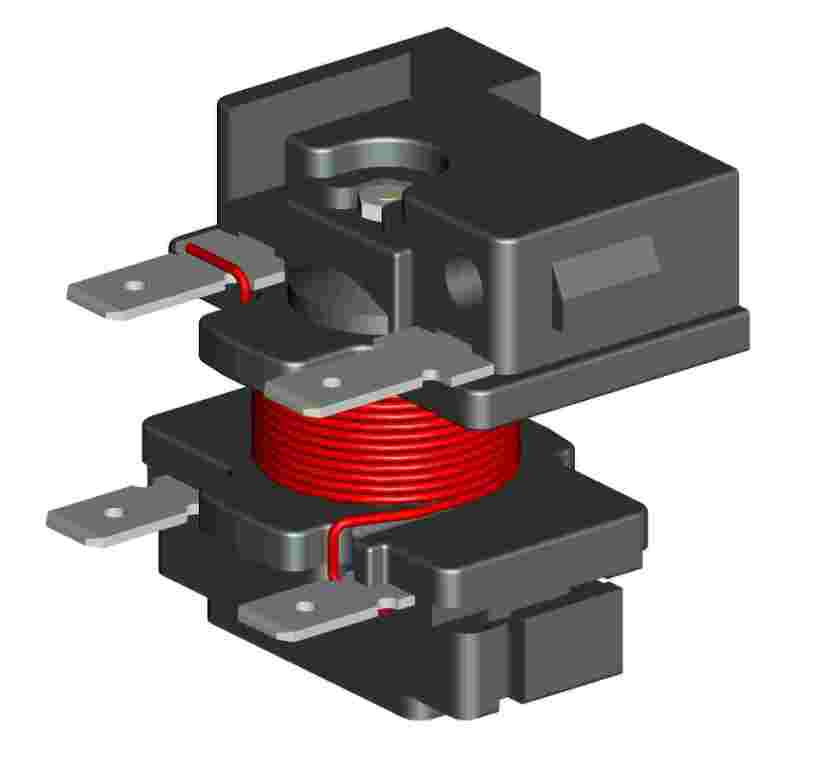

EMB1014Term Drawing
EMB1014Term
EMB1014Term schematic

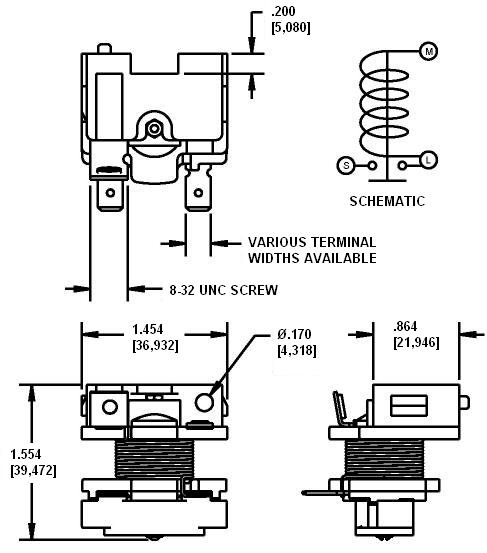

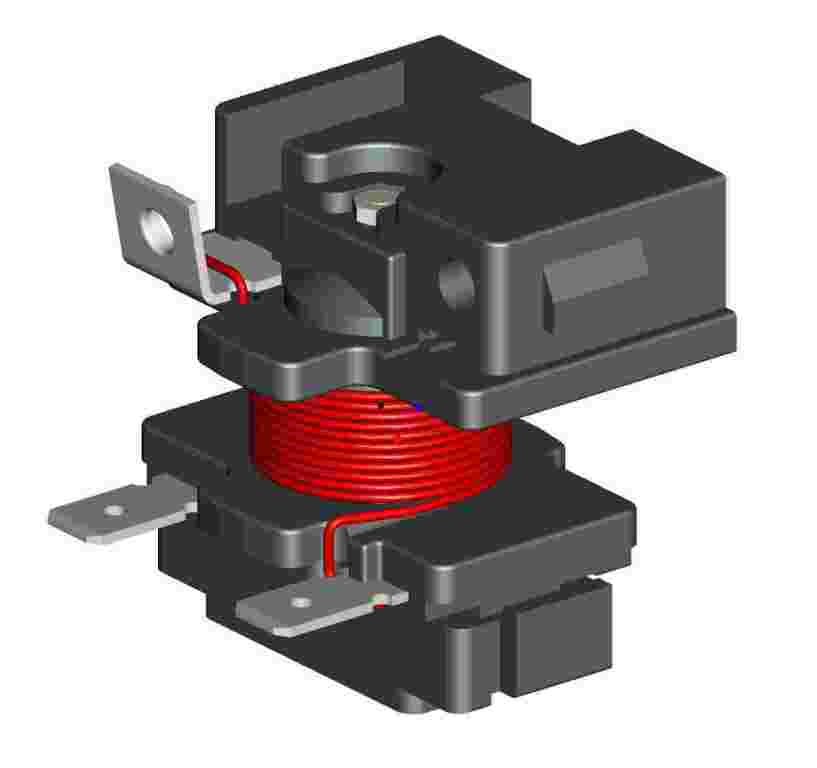

EMB101Srew Drawing
EMB101Screw
EMB101Screw schematic

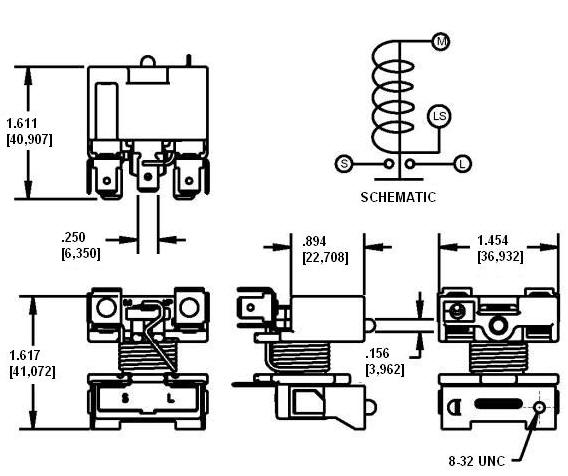

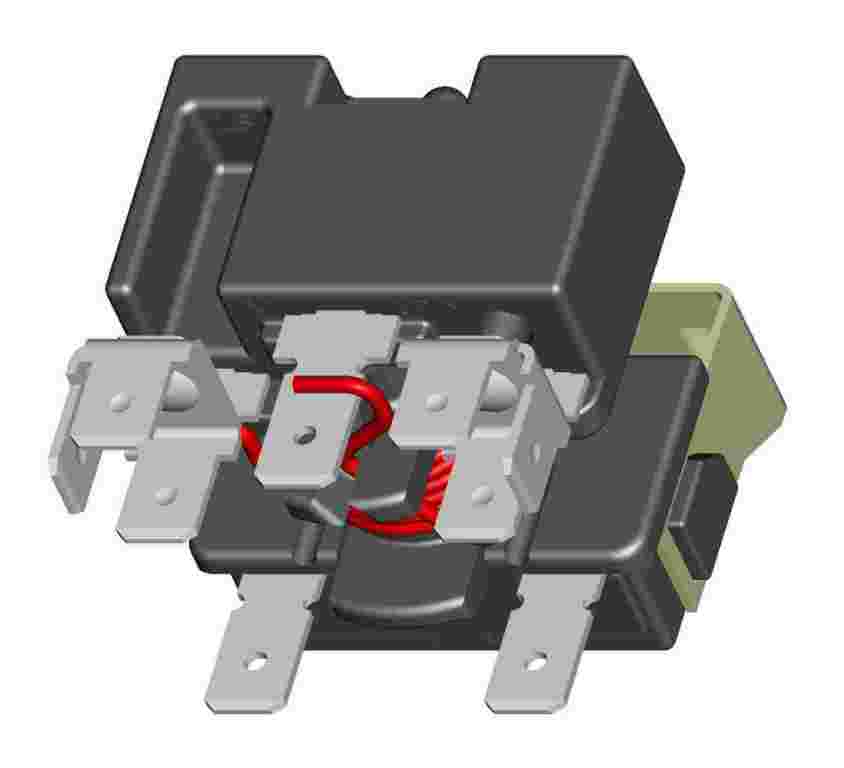

EMB1505Term Drawing
EMB1505Term
EMB1505Term schematic

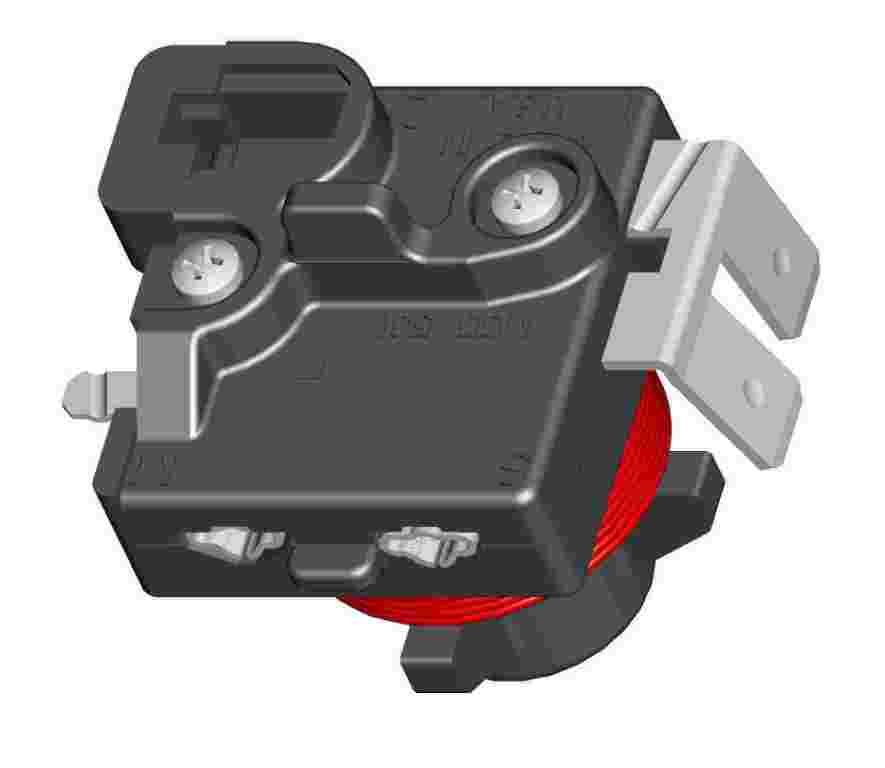

EMB5012Term Drawing
EMB5012Term
EMB5012Term schematic
EMB501Special
                        Drawing
EMB501Special
EMB501Special schematic
