Collector Rings, Slip Rings
|
||||||||||||

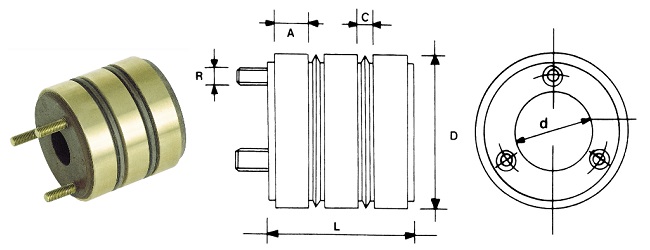

| Part | Price | Rings | D-Diameter | A-Width | L-Length | C-Width | R-Studs | d-diameter | Notes | |||
| Collector3R40x7 | $99.50 | 3 | 40mm | 7mm | 37mm | 5mm | M4 | 15mm | Rating: 10A/ring max. | |||
| Collector3R52x9 | $126.50 | 3 | 52mm | 9mm | 50mm | 6mm | M4 | 24mm | Rating: 10A/ring max. | |||
| Collector3R60x10 | $133.50 | 3 | 60mm | 10mm | 52mm | 6mm | M5 | 20-26mm | Rating: 20A/ring max. | |||
| Collector3R60x12 | $184.50 | 3 | 60mm | 12mm | 60mm | 7mm | M5 | 22-28mm | Rating: 25A/ring max. | |||
| Collector3R70x10 | $148.00 | 3 | 70mm | 10mm | 55mm | 6mm | M5 | 22-32mm | Rating: 25A/ring max. | |||
| Collector3R70x13 | $195.00 | 3 | 70mm | 13mm | 62mm | 5mm | M5 x 18mm | 19mm | Rating: 25A/ring max. | |||
| Collector3R80x12 | $257.50 | 3 | 80mm | 12mm | 62mm | 6mm | M5 | 30-34mm | Rating: 25A/ring max. | |||
| Collector3R91x14 | $280.00 | 3 | 91mm | 14mm | 72mm | 7mm | M6 | 30-42mm | Rating: 50A/ring max. | |||
| Collector3R91x19 | $323.00 | 3 | 91mm | 19mm | 84mm | 9mm | M8 | 30-42mm | Rating: 100A/ring max. | |||
| Collector3R101x14 | $340.00 | 3 | 101mm | 14mm | 74mm | 8mm | M8 | 30-52mm | Rating: 100A/ring max. | |||
| Collector3R112x8 | $380.00 | 3 | 112mm | 8mm | 62mm | 14mm | M8 | 35-53mm | Rating: 50A/ring max. | |||
| Collector3R112x14 | $450.00 | 3 | 112mm | 14mm | 78mm | 10mm | M8 | 35-55mm | Rating: 100A/ring max. | |||
|
|
||||||||||||
| Part | Price | Rings | D-Diameter | A-Width | L-Length | C-Width | R-Studs | d-diameter | Notes | |||
| Collector3R121x15 | $750.00 | 3 | 121mm | 15mm | 82mm | 10mm | M8 | 50-65mm | Rating: 100A/ring max. | |||
| Collector3R121x20 | $620.00 | 3 | 121mm | 20mm | 97mm | 10mm | M10 | 50-65mm | Rating: 150A/ring max. | |||
| Collector3R131x20 | $750.00 | 3 | 131mm | 20mm | 98mm | 10mm | M10 | 50-70mm | Rating: 150A/ring max. | |||
| Collector3R140x16 | $790.00 | 3 | 140mm | 16mm | 86mm | 14mm | M10 | 50-70mm | Rating: 150A/ring max. | |||
| Collector3R140x20 | $820.00 | 3 | 140mm | 20mm | 92mm | 10mm | M10 | 50-74mm | Rating: 150A/ring max. | |||
| Collector3R160x18 | $1100.00 | 3 | 160mm | 18mm | 106mm | 12mm | M10 | 60-75mm | Rating: 150A/ring max. | |||
| Collector3R180x25 | $1290.00 | 3 | 180mm | 25mm | 116mm | 16mm | M12 | 90-110mm | Rating: 200A/ring max. | |||
| Collector3R180x32 | $1400.00 | 3 | 180mm | 32mm | 137mm | 12mm | M12 | 90-110mm | Rating: 250A/ring max. | |||
| Collector3R200x25 | $1890.00 | 3 | 200mm | 25mm | 125mm | 16mm | M12 | 90-110mm | Rating: 200A/ring max. | |||
| Collector3R200x32 | $2400.00 | 3 | 200mm | 32mm | 146mm | 16mm | M12 | 90-110mm | Rating: 250A/ring max. | |||
|
||||||||||||

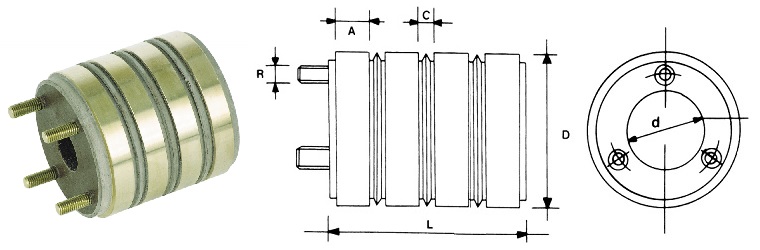

| Part | Price | Rings | D-Diameter | A-Width | L-Length | C-Width | R-Studs | d-diameter | Notes | |||
| Collector4R40x10 | $162.00 | 4 | 40mm | 10mm | 62mm | 3mm | M4 | 16-20mm | Rating: 10A/ring max. | |||
| Collector4R52x9 | $174.00 | 4 | 52mm | 9mm | 62mm | 6mm | M4 | 20-24mm | Rating: 20A/ring max. | |||
| Collector4R60x12 | $246.00 | 4 | 60mm | 12mm | 81mm | 7mm | M5 | 22-28mm | Rating: 25A/ring max. | |||
| Collector4R70x10 | $280.00 | 4 | 70mm | 10mm | 72mm | 6mm | M5 | 22-32mm | Rating: 25A/ring max. | |||
| Collector4R70x13 | $292.00 | 4 | 70mm | 13mm | 81mm | 5mm | M5 | 20-34mm | Rating: 25A/ring max. | |||
| Collector4R80x12 | $317.00 | 4 | 80mm | 12mm | 80mm | 6mm | M5 | 30-34mm | Rating: 25A/ring max. | |||
| Collector4R91x14 | $333.00 | 4 | 91mm | 14mm | 93mm | 8mm | M8 | 30-42mm | Rating: 50A/ring max. | |||
| Collector4R101x14 | $492.00 | 4 | 101mm | 14mm | 95mm | 8mm | M8 | 30-52mm | Rating: 100A/ring max. | |||
| Collector4R112x8 | $338.00 | 4 | 112mm | 8mm | 62mm | 6mm | M4 | 35-55mm | Rating: 15A/ring max. | |||
| Collector4R121x20 | $735.00 | 4 | 121mm | 20mm | 127mm | 11mm | M10 | 50-55mm | Rating: 150A/ring max. | |||
| Collector4R151x21 | $1284.00 | 4 | 151mm | 21mm | 132mm | 11mm | M10 | 50-70mm | Rating: 150A/ring max. | |||
